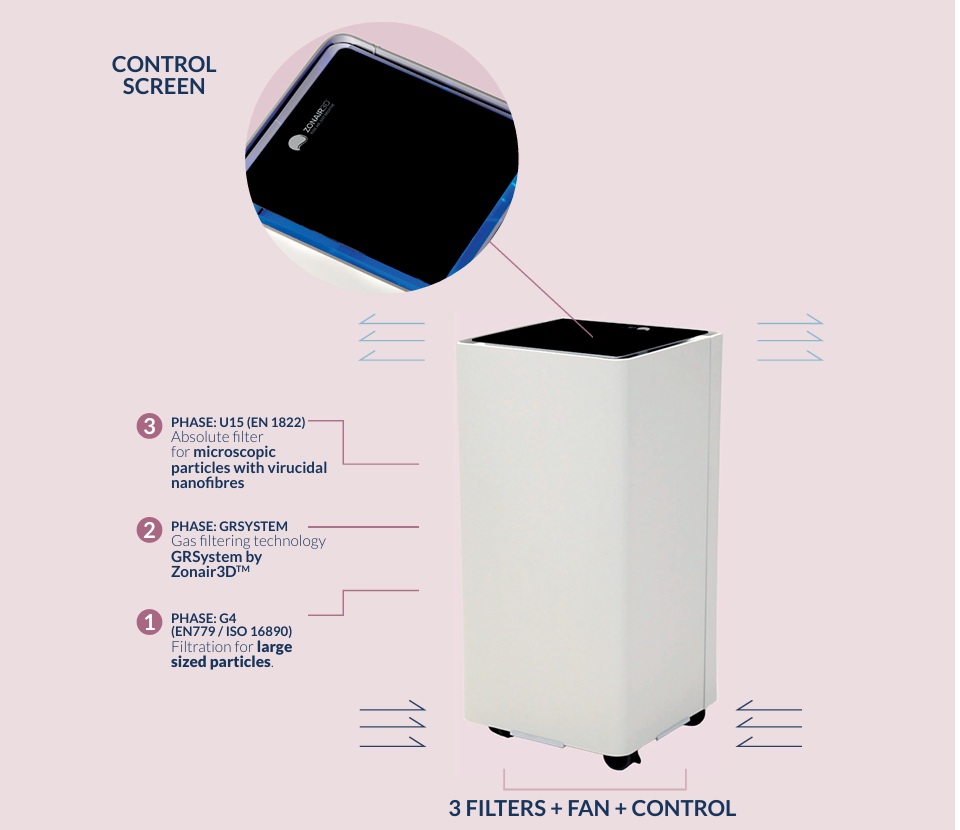

Filtration Stages of this Portable Air Purifier

Stage 1: Pre-Filter G4

• Standard: ISO 16890/EN779
• Efficiency: G4 coarse arrestant <90% to 60%
• Eliminates: PM10, dust, pollen, and hair
• Goal: prolong the life of the primary filters

Stage 2: ULPA U15 Absolute Filter

• The EN 1822: Standard
• More than 99.9995%: Efficiency
• Range of MPPS: 0.08 to 0.15 µm
• Technology: Nanofibers that are virucidal
• eliminates germs, viruses, PM2.5, PM1, and PM0.1.

Stage 3: GR System Gas Filter

• Technology: GR System activated carbon
• Eliminates: Chemical and toxic gases
• Efficiency of gas reduction:
• O₃: 100%
• 80% (SO)x and 80% NOx
• H₂S: 80%
• 60% for HCHO
• Result: Comfortable and safe indoor air

AIR+ 300 S & 430 S Applications:

The AIR+ 300 S and AIR+ 430 S function best in domestic living areas.

• One of the best available room air purifier units in the marketplace, the equipment functions best in spaces that include bedrooms and study rooms.
• The equipment finds use in both office spaces and conference areas.
• The equipment serves as an ideal solution for both hospitals and medical clinics.
• The equipment functions in both laboratory and testing environments.
• The equipment works best in areas that need air purification through movable devices.

Key Features of AIR+ Series:

• The design offers a portable system that requires no installation to operate.
• The system achieves a purification efficiency of 99.9995 percent.
• The system uses three different filtration methods to achieve its advanced filtration capabilities.
• The filter system uses ULPA U15 absolute filter technology.
• The system employs virucidal nanofiber technology for its protection against viruses.
• The system uses GR System technology to filter gases from the environment.
• The system operates to eliminate ozone from the surrounding atmosphere.
• The system uses EC motor technology to achieve its energy efficiency goals.
• The system operates at a sound level that produces minimal noise during its operation.
• The system uses a touch control screen.
• The system provides users with the ability to control both timer and speed settings.
• The system uses a compact design enabled by thermoforming to create its exterior casing.

AIR+ 300 S & AIR+ 430 S Working Principle

The AIR+ systems operate on forced air circulation using an EC motor-driven fan. The unit draws in polluted air through its intake grille which then moves through three filtration layers.

• Stage 1 removes coarse and large particles.
• Stage 2 captures microscopic particulates including viruses and bacteria.
• Stage 3 neutralizes dangerous gases through activated carbon-based adsorption.

The system circulates purified air back into the room which results in continuous airflow and decreasing indoor contamination.

The system removes:

• Suspended particulate matter which includes PM10 PM2.5 PM1 and PM0.1.
• The system removes both viruses and bacteria.
• The system removes environmental ozone O₃.
• The system removes toxic gases which include (NO)x and (SO)x.
• The system removes VOCs which function as both irritants and carcinogens.

The AIR+ systems achieve hospital-level air purification through their combination of three-stage purification systems, EC motor technology, and their implementation of low-noise acoustic engineering solutions which enable silent operation in residential, office, clinical, and other indoor environments.

AIR+ Series Benefits

• Breathing-grade clean air
• The system achieves ultra-high filtration efficiency
• The system is capable of inactivating viruses
• The space maintains an ozone-free environment
• The system operates at low noise levels which create comfortable spaces
• The system requires minimal energy to operate
• The design allows users to move easily between different rooms
• The filter system provides extended operational time before needing replacement
• The product meets requirements for use in medical environments
• The system enhances indoor air quality throughout the entire building.

Technical Specifications:

• An EC motor enabled fan.
• Phases of Filtering: G4 + GR System + ULPA U15
• Control: Touch screen with speed and ON/OFF buttons
• Timer: Yes
• Casing: Glass top panel and thermoformed body
• 230V of voltage with 50–60 Hz frequency
• 30 kg in weight
• 380 x 382 x 791 mm: Dimensions (mm)

Model-wise Technical Specifications

AIR+ 300 S:

• Maximum airflow rate: 332 m³/h
• 87 W of power consumption
• Sound Level: 46 dB(A)
• 230V voltage
• 50–60 Hz frequency

AIR+ 430 S:

• 430 m³/h is the maximum airflow
• 165 W of power consumption.
• Sound level in dB: 51.6 dB(A)
• 230V voltage
• 50–60 Hz frequency

Why Choose AIR+ 300 S & 430 S?

• The portable device achieves its maximum ULPA efficiency through its built-in particle and gas removal capabilities.
• The system provides hospital-grade air purification for its users.
• The system provides users with portability throughout its operation.
• The EC motor operates with high energy efficiency.
• The system produces sound at extremely low levels.
• The system functions properly in environments that need special protection.
• The system uses professional-grade air purification equipment.
• The product features a design that is both compact and contemporary.

How to Install AIR+ 300 S & 430 S

• The indoor location needs to have a completely open space for proper airflow so that the portable air purifier can achieve its maximum filtration capacity. The device needs to be positioned on a flat and solid base for its optimal performance without any vibrations and balance issues.
• Do not position the air purifier unit at corners, adjacent to walls, near curtains and furniture which obstruct air intake and outlet ventilation. The system requires 30 to 50 centimeters of space between its sides and rear areas to achieve proper airflow.
• The filter compartment must be opened to verify that all air filter stages have been installed correctly.
• The G4 pre-filter serves to capture large dust particles and debris. Therefore, AIR + 300 S and 430 S are best air purifier for dust.
• The ULPA U15 / HEPA filter serves to remove ultra-fine particles from the air.
• The GR System gas filter functions to eliminate odors and volatile organic compounds and dangerous gases.

Electrical Connection:

• This must be connected to a 230V single phase power supply using the cable which has been provided along with it.
• The socket requires proper earthing to ensure safe operation and reliable performance.
• The use of extension cords should be avoided because it prevents the system from receiving stable power distribution.

System Start-Up & Settings:

• The device power activation process requires users to touch the control panel.
• Users should select the fan speed according to the room dimensions and the existing pollution level.
• Low settings should be used in spaces that require no sound disturbance.
• The medium setting should be used as a regular air purifier for home
• The high setting should be used in situations when there is intense pollution or when people need fast air cleaning.
• The air purifier functions better through higher operating speeds which enable it to remove dust and smoke and allergy-causing substances.
• AIR+ is the best air purifier for pets; the air purifier functions optimally for pet owners because it has a high airflow capacity.
• The system should operate through a timer or automatic mode which enables scheduled tasks while saving power.
• The system requires users to check filter status indicators at regular intervals while following scheduled filter replacement guidelines.
• The system functions without needing any permanent installations, ductwork or HVAC system connections.
• The system allows users to move between different rooms whenever they want.
