LG Ductable AC Fixed Speed

This LG Ductable Air Conditioner system is designed for easy maintenance, long life, and flexible installation. With pre-charged outside units, smart safety features, and anti-corrosive coatings, LG's Fixed Speed Duct AC is built for long-term performance in harsh Indian weather conditions.

Key Features of LG Ductable AC

Technology of Scroll Compressors

• Low noise and vibration,
• Designed for great efficiency and dependability,
• Appropriate for hot-weather areas
• R410A Refrigerant
  • Eco-friendly (non-ozone depleting)
  • Improved cooling effectiveness
• Pre-Charged Outdoor Units
  • Reduces the complexity of installation
  • Guarantees LQC testing quality control.
• Pump-Down Capability
  • Enables easier and safer maintenance
• Comprehensive Safety Features
  • EOCR: Electronic Over Current Relay
  • Protection against under-voltage and over-voltage
  • Low and high-pressure switches
  • Detection of phase reversal and imbalance
• Anti-corrosive blue Fin Coating
  • Increases lifetime in hostile settings
  • Hydrophilic film prevents moisture accumulation
• Flexible Fan Speed Options
  • For exact control, low, medium, and high
• Microprocessor-Based Control
  • Enables advanced oversight and control
• Wired Remote Controller
  • Control of the fan speed, an LCD monitor, and an error check
  • The Child Lock and the status indications for the compressor

Applications of LG Ductable AC:

The LG Fixed Speed Duct system works well for:

• Office buildings
• Stores and showrooms
• Banquet halls and restaurants
• Healthcare institutions and hospitals
• Schools
• Warehouses and industrial areas
• Wide residential structures

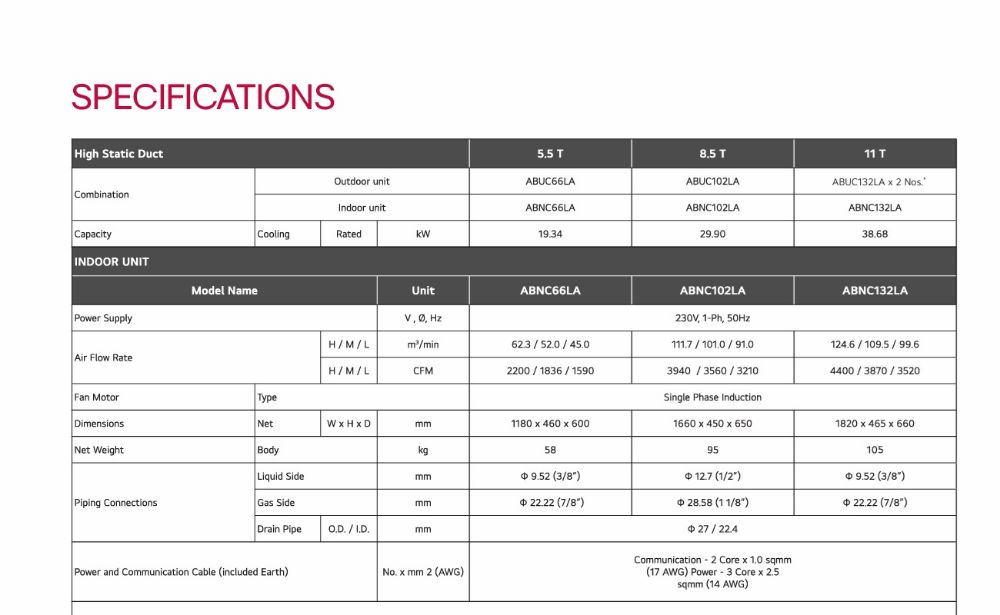

Technical Specifications of LG Ductable AC

Indoor Unit (IDU):  Model ABUC132LA

• Indoor Fan Control
• Microprocessor-based
• 3 Fan Speed Modes: Low, Medium, High
• Auto Mode
• Wired Controller Display: 7-Segment LCD
• Additional Features:
  • Show the indoor temperature clearly
  • Secure safety features for children
  • Dynamic adjustment during execution
  • Compressor ON light indicator
  • Diagnosing errors effectively
• Connectivity: Works with standard ducting options

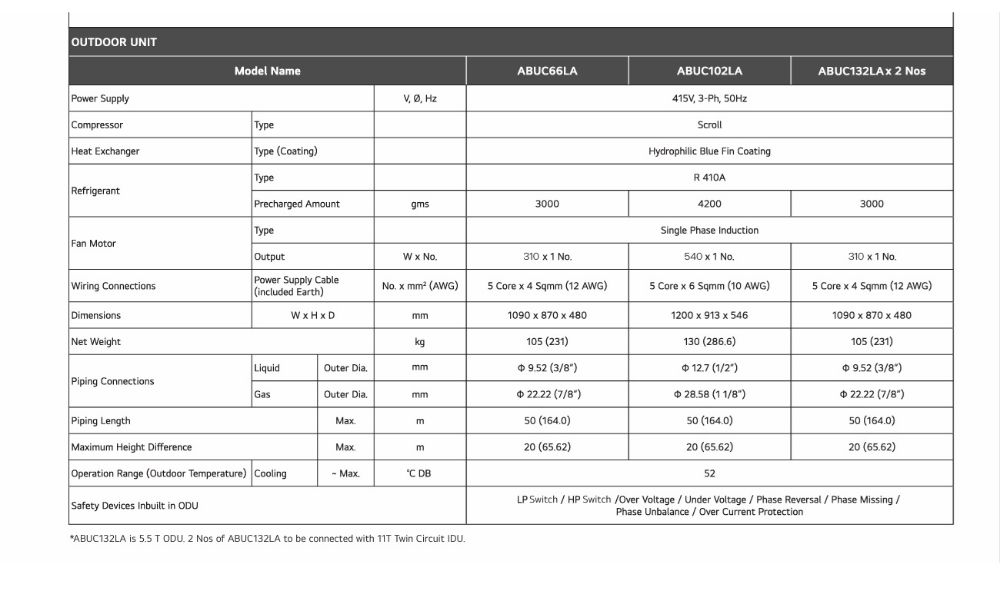

Outdoor Unit (ODU): Model ABUC132LA * 2 Nos

• Factory Refrigerator Compressor
• Fixed Speed with R410A Refrigerant
• Scroll-type compressor
• Cooling Capacity: 5.5 Tons
• Max Operating Temperature: 52°C
• Blue Fin Coating
• Overcurrent Protection: Yes
• Pump Down Feature for simplified servicing
• Piping Distance:
  • Max Total Length: 50 meters
  • Max Vertical Height: 20 meters
• Pre-charged Refrigerant: Yes
• Smart PCB: Ensures voltage protection

How To Install an LG Ductable Air Conditioner:

The correct setup of the LG ductable air conditioner is critical to its efficient operation and long-term dependability. Here's a step-by-step guide for ductable split AC:

1. Site Preparation

• Ensure that there is sufficient room for the units that are located both inside and outdoors to install the LG Ductable AC 8.5 ton.
• The structural support for the ODU should be checked, particularly if it is located on roofs or balconies.
• Ensure that adequate clearances are maintained around the units for ventilation and maintenance.

2. Indoor Unit Installation

• Location:
  • Choose a location in the center of the whole region to guarantee continuous air distribution across the territory.
  • The ducts and routing should be easily accessible for maintenance needs, and the access should be uncomplicated.
• Mounting:
  • It is recommended that you mount the gadget using the supplied brackets or hangers.
  • To prevent water from escaping through the condensate drain, it is necessary to check that it is level.

• Ductwork:
  • A connection to a high-static duct system that is adequate for the unit's capacity and is acceptable for installing the unit.
  • Insulating each joint is necessary to prevent air from escaping through the joints.
• Condensate Drain:
  • To ensure that water can flow out without any pauses, it is necessary to build a drain pipe that is sloped appropriately.
  • The installation of a trap is recommended to prevent backflow and aromas that are not desired.

3. Outdoor Unit Installation:

• The first step in installing an LG 5.5-ton ductable AC ODU, for example, is to place it in a location that is free of direct heat and has adequate ventilation.
• Make sure there is at least 300 millimeters between you and the walls on all sides of the room.
• To make installation easier, lay the base on a concrete pad or a steel frame.
• The use of vibration-reducing mounts is a successful strategy for lowering noise and vibration levels.
• It is essential to pay attention to the characteristics that govern the maximum height and length of the pipe. These specifications are as follows: the pipe must be at least 50 meters in length overall and 20 meters in length vertically.
• Make sure you utilize the proper insulation to save energy and protect yourself from danger.
• As much as possible, you should avoid angles that are excessively sharp and joints that are unnecessary.

4. Electrical Connections:

• Make sure that you choose wires that have the appropriate rating and that you stick to the local electrical code while you are building the wiring.
• Take the necessary precautions to ensure that the grounding is strong enough to avoid any electrical risks or short circuits from happening.
• The wired remote control must be positioned in a place that is readily accessible to complete the process of setting up the controller.
• A connection should be made between the control panel and the control wire for the IDU.

5. System Commissioning:

• Ensure that there is sufficient refrigerant:
• Upon inspection of the gauge, it is evident that the external unit has already been adequately charged.
• More refrigerant may be necessary if the pipe exceeds the prescribed length.

The procedure for pumping down (if it is necessary):

• The service valve should be used to ensure that the refrigerant is adequately isolated and recovered before proceeding with any repair.
• As a result of this function, which stops gas from being discharged into the environment, maintenance is cut down significantly.

Evaluation and testing in the final stages:

• When the system is operating, check the cooling function.
• Always be aware of any unusual vibrations, noises, or trouble codes.
• Careful monitoring of both temperature and pressure is essential to achieving the highest potential level of performance.

LG Ductable AC Price List

• LG 5.5-ton ductable AC price: ₹93,000
• LG 8.5-ton ductable AC price: ₹1,32,000
• LG 11-ton ductable AC price: ₹1,72,000
