Hitachi VRF System - Set Free Sigma Central Air Conditioning System (Cooling in summers and heating in winters) - Outdoor Unit ODU from 3 HP to 24 HP
Hitachi VRF System - Set Free Sigma Central Air Conditioning System (Cooling in summers and heating in winters) - Outdoor Unit ODU from 3 HP to 24 HP. Hitachi Variable Refrigerant Flow (VRF) System Outdoor Unit ODU comes in two variants. Hitachi Mini VRF Set Free ODU ideally suited for homes and smaller applications. Available in 3 HP, 4 HP, 5 HP, 6 HP, and 7 HP. And Hitachi Set Free Sigma VRF ODU for larger commercial applications. From 8 HP, 10 HP, 12 HP, 14 HP, 16 HP, 18 HP, 20 HP, 22 HP, 24 HP.
Delivery date: 1 week
Call for pricing (+91 9650110202)

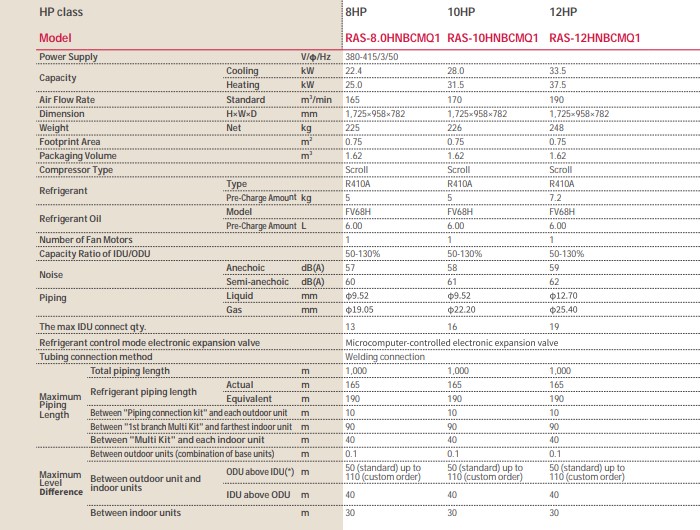

Specifications (Zoom to view the specs)
These VRF Outdoor units or ODU provide higher efficiency, enhanced strength, engineered aesthetics, compact cooling and heating, and compact design.
Extreme Comfort - • Smooth Drive Function (These ODUs take input signals from indoor machines and accordingly calculate the appropriate amount of refrigerant that needs to be supplied. Therefore, these Outdoor units operate based on the load. This is made possible by the use of highly efficient DC inverter compressor technology ) • Backup Operation • Failure Prevention
Expandable Capacity - • Single Module is available up to 24 HP • Combination Module can be achieved up to 96 HP
Engineered Design Flexibility - • Improved Ambient Temperature Operation Range (ambient temperature range of -20 to 52 degrees C) • External Static Pressure (more number of options for external static pressure (up to 4) and maximum up to 80 Pa of outdoor unit) • Piping Connection (Suitable for a high-rise building or complex facilities and that leads to cost/time saving for designers, with more efficient design) • Easier Transportation • Easier Maintenance
Enhanced Efficiency - • Improved EER (Energy Efficiency Ratio up to 4.99) & Part Load (up to 5.9) • Sigma Shaped Heat Exchanger (The heat exchange area has been increased by more than 10%) • Air Outlet Design (improvement of airflow volume by 23%. The energy consumption in the driving shaft has decreased by 20% on average) • Compressor Control (The newly developed DC inverter compressor provides precise control technology of 0.1 Hz increments inverter frequency).
All New DC Inverter Scroll Compressor
