Best Air Purifier

Air Pro System: Technical Explanation

The Air Pro System is the best air purifier for dust. It functions by continuously extracting indoor air, and passing it through three sequential filtration stages:

• (PM10): It has Pre-filtration of large particles (PM10)
• PM0.1: It has Absolute filtration of fine and ultrafine particles (PM0.1)
• Advanced gas and chemical pollutant reduction

The treated air undergoes purification before it gets released. The whole process results in reduced indoor pollutant levels.

More about 3 Filtration Stages of ZONAIR3D Best Air Purifier:

Stage 1: Particle Pre-Filter (G4)

• Standard: EN779 / ISO 16890
• Function: The system removes particles that are larger than PM10
• Efficiency: G4 <90% – 60% coarse dust
• Purpose: The system protects downstream filters which results in extended equipment life.

Stage 2: H14 Absolute HEPA Filter Air Purifier

• Standard: EN 1822
• Efficiency: 99.995 percent particle removal effectiveness
• MPPS Range: 0.08 – 0.15 µm
• Technology: It has Nanofibers with virucidal properties
• Removes: All like PM2.5, PM1, PM0.1, bacteria, viruses

Stage 3: Zonair3D's GR System Gas Filter:

• Technology: Gas filtering using the exclusive GR System
• Reduction of harmful, irritating, and cancer-causing gases is the goal.
• Efficiency of first-pass gas reduction: O₃ (Ozone): 100%
• 80%: SOₓ
• 80%: NOₓ (Nitrogen oxides)
• 80%: H₂S (Hydrogen Sulfide)
• 60%: HCHO (Formaldehyde)

Indoor air levels are lowered to safe and comfortable levels.

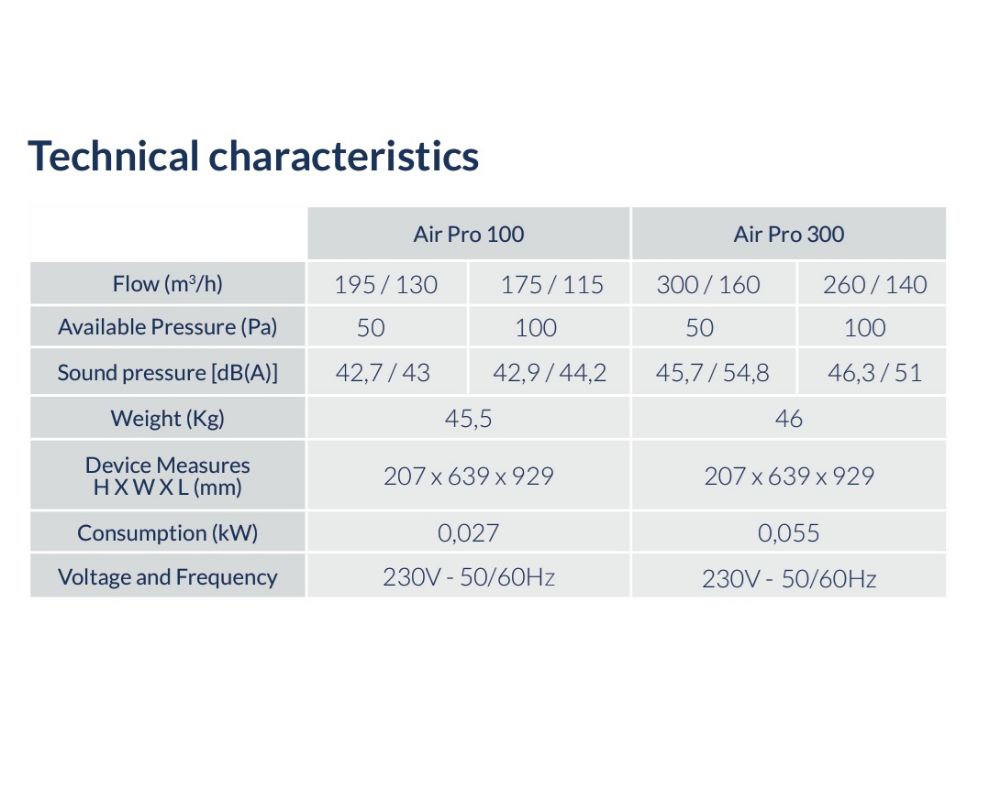

Technical Details of the Air Pro 100 and Air Pro 300

Air Pro 100:

• Rate of Air Flow in cubic meters per hour: 195/130 m³/h
• 50/100 Pa: Pressure Available
• Level of Sound Pressure: 42.7–43 dB(A)
• 5 kg: Weight
• 027 kW is the power consumption.
• 230 V: Voltage
• 50/60 Hz:  Frequency
• 207 × 639 × 929 mm (H × W × L): Device Measurements

Air Pro 300:

• 300/160 m³/h: Airflow Rate
• 50/100 Pa: Pressure Available
• 7–54.8 dB(A): Level of Sound Pressure
• 46 kg: Weight
• 055 kW: Power consumption
• 230 V: Voltage
• 50/60 Hz: Frequency
• 207 × 639 × 929 mm (H × W × L): Device Measurements

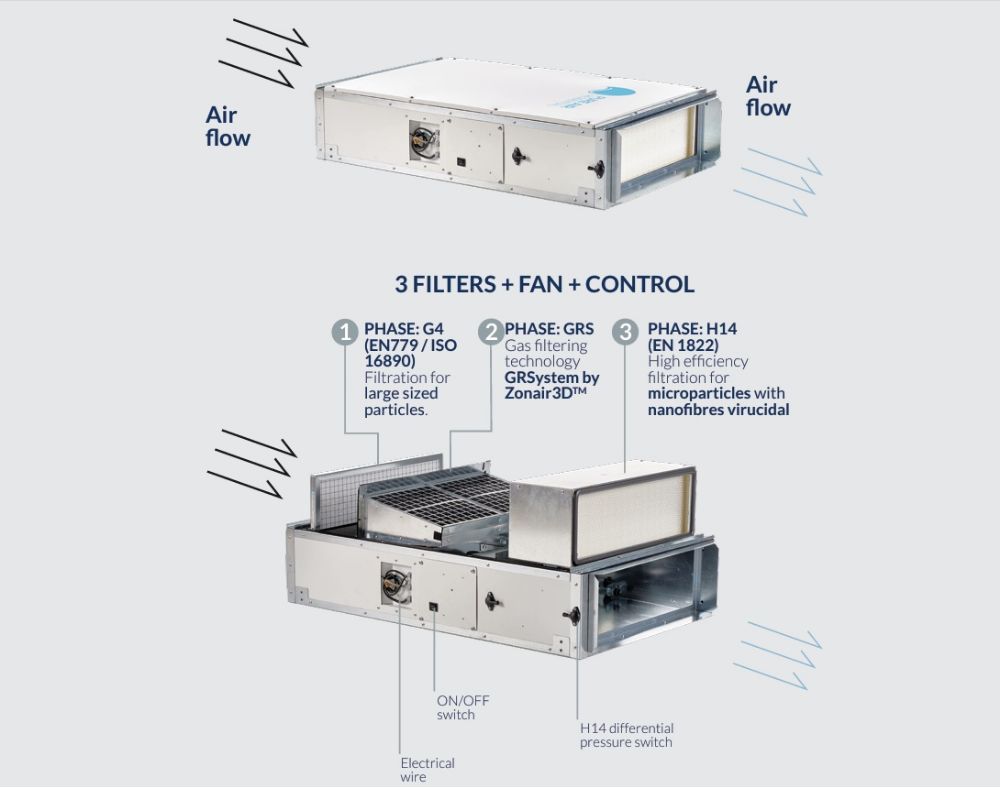

Overview of System Components

• Three-stage filtering apparatus
• Highly efficient fan
• H14 differential pressure switch
• Control switch with ON/OFF function
• Interface for electrical wiring
• Ports for airflow intake and outflow

Benefits of Air Pro: Best Air Purifier for Home

• Clean breathable indoor air
• Indoor environment devoid of ozone
• Defense against viruses that are spread through the air
• decrease in exposure to chemicals and gases
• Enhanced comfort and health of occupants
• Ideal for extended working hours
• Low energy use
• Silent operation in delicate areas
• enhances the general quality of indoor air (IAQ)

Applications Of Air Pro 100 & 300:

• The system works superbly in residential apartments and homes.
• The system is also suitable for startup office spaces, hotels, gyms, Yoga studios, and corporate office buildings.
• The system can also be deployed in clinics, hospitals and medical facilities.
• The system is also installed in educational institutions such as schools and universities and training centers.
• The system works in other commercial spaces including shopping malls and retail outlets.
• The system is suitable for environments that need to maintain ozone-free indoor air.
• The system delivers clean air in residential or commercial spaces that contain gases, smoke, and particulate matter contaminants.

Key Features of Air Pro 100 & Air Pro 300:

• The system uses three separate filtration stages for its advanced 3-stage filtration system.
• The system eliminates 99.995% of harmful particles through its filtration system.
• The system removes microparticles which measure 0.1 µm (PM0.1) and smaller.
• The system decreases the emission of toxic and cancer-causing gases into the environment.
• The system brings environmental ozone (O₃) to a complete halt through its neutralizing function.
• The HEPA filtration system includes nanofibers which provide virucidal protection.
• The system operates with minimal energy requirements.
• The system produces sound at a level that remains below operational thresholds.
• The system works with all building extraction systems.
• The system features a design that enables easy installation in compact spaces.

Why Air Pro 100 and Air Pro 300 – Large Room Air Purifier

• Advanced multi-stage filtration system: The Air Pro 100 and 300 systems use advanced multi-stage filtration technology to remove all allergens and PM2.5 particles and ultra-fine dust and all other airborne contaminants.
• Great- grade air quality: The system provides hospital-grade air quality for commercial spaces, industrial facilities, and residential areas through its certified HEPA H14 filters which detect 99.995% of small particles.
• Advanced Gas Reduction Technology: This best home air purifier uses chemical filtration layers and activated carbon to reduce industrial and urban pollutants and odors and volatile organic compounds (VOCs).
• Effectively remove bacteria and viruses: The system uses specialized filters which effectively remove bacteria and viruses and dangerous germs to improve cleanliness and protect the health of its occupants, it is an air purifier for allergies.
• Minimizes power consumption: The system achieves continuous operation through its energy-efficient motors and its airflow system which minimizes power consumption. The system serves as a great solution for polluted urban areas which experience high traffic and poor air quality.
• Compact Design: The compact design of the system enables installation in both new construction projects and existing buildings.
• Dependable Performance: The system operates with dependable performance throughout its operational life because it employs high-quality materials which need little maintenance.
• Air purification system: Through treating incoming and outgoing air, the air purification system improves the health of both external and indoor environments, it is also the best air purifier for pets.

Method of Installation: Air Pro Systems

• Professional Installation: The installation of air filter needs to be performed by HVAC technicians who possess the required skills for this kind of work. The Air Pro System requires professional installation because only certified technicians can ensure safe installation and proper setup and technical compliance.
• Securely Installed: The installation site needs to be fully studied to determine the optimal location and proper air extraction point for efficient airflow management. The device needs to be securely installed in its designated service or mechanical space through the use of appropriate brackets or supports to achieve stability and vibration reduction during operation.
• Duct Connection: The process of duct connection requires a precise method, which creates airtight connections between exhaust ducts and air input ducts to achieve maximum operational efficiency.
• Power Connection: The system requires power connection according to manufacturer requirements while electrical safety standards require proper grounding through designated wiring methods.
• Proper Filter Installation: The organization needs to establish filter maintenance procedures which require personnel to examine filter conditions and ensure proper filter installation to protect indoor air quality and internal system components and maintain unimpeded air distribution.
• Operational Testing: The system requires operational testing, which includes activating the unit to confirm that all components, including fans and controllers, function according to their intended design.
• Safety criteria: The installation requires validation of operational and safety criteria through measurement of airflow and pressure and noise levels and overall system functionality.
