VOLTAS Mini Sub 5 TON Ductable AC

VOLTAS Mini Sub 5 TR Ductable AC. Indoor & Outdoor Units (Available in 1.5 Ton (TR), 2.0 Ton (TR), 2.8 Ton (TR) & 3.6 Ton (TR)). This product by VOLTAS is also known as Voltas Hideaway Ducted Unit. The VOLTAS Mini Sub 5 TR Ductable AC system features an indoor unit that maintains an ultra-slim design that measures 195 mm in height for the 1.5 TR model. The system is designed to be installed in locations where only limited space is accessible through false ceiling systems. The unit operates on a Direct Expansion (DX) refrigeration system and uses an R32 eco-friendly refrigerant with its high-efficiency rotary compressor. The system offers different capacity options which range from 1.5 TR to 3.6 TR.
Manufacturer: Voltas Limited
SKU: SGL86
Free shipping
Delivery date: 3-5 days
*
*
Call for pricing (+91 9650110202)

Technical Specifications: Indoor Unit VOLTAS Ductable AC

  1. 1.5 TR Indoor Unit:
  • Model Number is: DEFCT18KD0S4JJ01
  • Power Source is: 50 Hz, 1 Phase and 230 V
  • Rate of Airflow is: 900 CMH
  • R32 is: Refrigerant
  • 19 kg is: Net weight
  • Weight (Kg): 23
  • In cm Net measurements: (100 x 19.5 x 50.3) cm
  • Packing Dimensions in cm: (120 x 27 x 56) cm
  1. 2.0 TR Indoor Unit:
  • Model Number is: DEFCT24KD0S4JJ01
  • Power Source is: 50 Hz, 1 Phase and 230 V
  • Rate of Airflow is :1100 CMH
  • R32 is: Refrigerant
  • 29 kg is: Net weight
  • 33 kg is: Gross weight
  • In cm Net measurements are: 116 x 21.5 x 48.4 cm
  • In cm Package Dimensions are: 140 x 29 x 54 cm
  1. 2.8 TR Indoor Unit:
  • Model number is: ACDEU30CCG14
  • Power Source is: 50 Hz, 1 Phase and 230 V
  • Rate of Airflow is: 2040 CMH
  • R32 is: Refrigerant
  • 59 kg is: Net weight
  • 64 kg is: Gross weight
  • In cm Net measurements are: 120.5 x 33 x 72.5 cm
  • In cm Package Dimensions are: 123 × 34 × 83 cm
  1. 3.6 TR Indoor Unit:
  • Model number is: ACDEU40CCG14
  • Power Source is: 50 Hz, 1 Phase and 230 V
  • Rate of Airflow is: 2720 CMH
  • R32 is: Refrigerant
  • 59 kg is: Net weight
  • 64 kg is: Gross weight
  • In cm Net measurements are: 5 x 33 x 72.5 cm
  • In cm Package Dimensions are: 123 × 34 × 83 cm



Outdoor Unit VOLTAS Ductable AC: Technical Specifications

  1. 1.5 TR Outdoor Unit
  • Model Number is: DCFCT18KD0S4JJ01
  • Power Supply is: 230 V, 1 Phase and 50 Hz
  • Rotating compressor
  • R32 is: Refrigerant
  • 35 kg: Net weight
  • 39 kg is the gross weight
  • In cm Net measurements are: 78 x 55 x 30 cm
  • In cm Package Dimensions are: 90.5 × 58 × 32.5 cm
  1. 2.0 TR Outdoor Unit
  • Model Number is: DCFCT24KD0S4JJ01
  • Power Source is: 230 V, 1 Phase and 50 Hz
  • Rotating Compressor
  • R32 is: Refrigerant
  • 38 kg is: Net weight
  • 42 kg is the gross weight
  • In cm Net measurements are: 81.8 x 60 x 37.9 cm
  • In cm Net measurements are: 94 x 65 x 42 cm
  1. 2.8 TR Outdoor Unit
  • Model number is: ACDCUA03014GMD
  • Power Source is: 50 Hz, 3 Phase and 415 V
  • Rotating compressor
  • Refrigerant is: R32
  • 49 kg is: Net weight
  • 52 kg is: Gross weight
  • In cm Net measurements are: 85.5 x 65.5 x 37 cm
  • In cm Net measurements are: 95 × 71 × 41 cm
  1. 3.6 TR Outdoor Unit Model
  • Model Number is: ACDCUA04014HD
  • Power Source is: 50 Hz, 3 Phase, 415 V
  • Rotating compressor
  • Refrigerant is: R32
  • Net weight is: 70 kg
  • Weight in gross: 73 kg
  • In cm Net measurements are: 91 x 82.5 x 40 cm
  • In cm Net measurements are 102 x 83 x 46 cm



Refrigerant piping details:

  • Liquid Line in mm is: 6.35/9.52 mm
  • Gas Line in mm is: 12.7 / 15.9 / 15.8 / 19.05 mm
  • Standard Length is: Equal to 7.5 meters
  • Additional Length: Needs gas topping
  • Cable Interlocking: 3C × 1.5 sq. mm

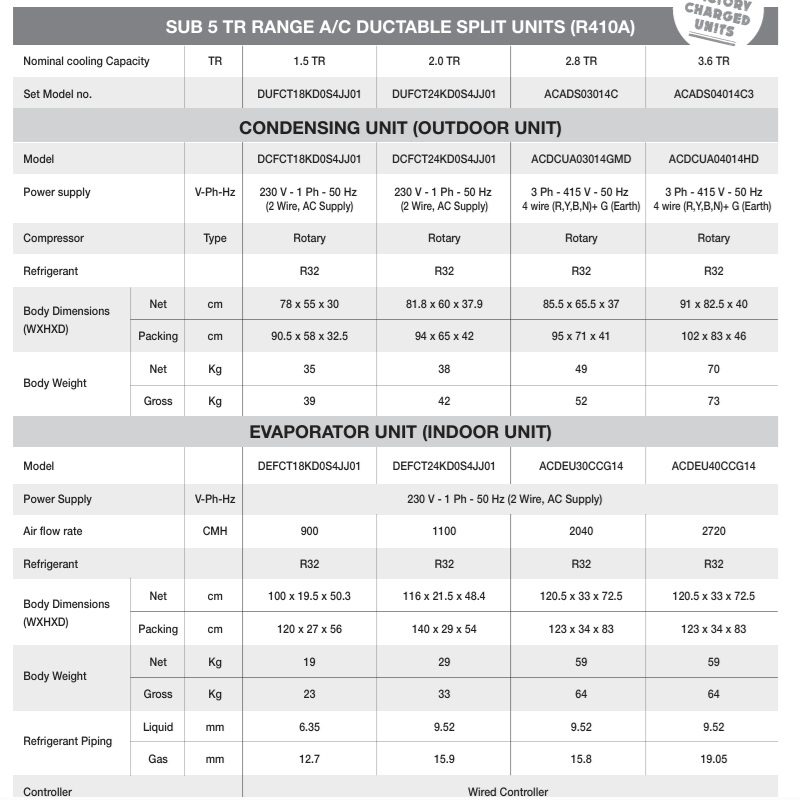

VOLTAS Mini Sub 5 TR Ductable AC Specifications

Applications:

  • It is best for workplaces, commercial showrooms, hotels, guest rooms, medical facilities and hospitals, residential spaces, villas and apartments, and luxurious homes.
  • Ideal for installing in false ceilings.
  • Used in Training facilities and classrooms.
  • Designed to provide covert and quiet cooling.
  • Useful in situations requiring uniform multi-point air distribution.



Key Features of Ductable AC Voltas:

  • Extremely thin design: at 195 mm (1,5 TR)
  • Refrigerant: (R32) environmentally friendly gas
  • Compressor: Rotary design (for reliable load management)
  • Range of airflow: 900 to 2720 (CMH)
  • Operation(performance): Low-noise, silent
  • Installation (mounting in the ceiling): Hidden hideaway
  • Controller: typical wired
  • Maintenance: Simple design (for service access)
  • Small body: Constructed (to save space)
  • Type of application: light (commercial HVAC)



Benefits Of Ductable AC Voltas

  • Even Air Distribution: Ducts (for uniform cooling)
  • Interior aesthetics: No indoor units(visible)
  • Low noise: Great for peaceful settings
  • Energy-efficient: Enhanced compressor efficiency
  • Adaptable capacity: TR choices
  • Compact installation: Suitable (tiny ceiling openings)
  • Durability: Sturdy (commercial construction)
  • Broad service support: Voltas (network throughout India)



VOLTAS Ductable AC Price List

The price list for Voltas ductable AC systems depends on below specific factors which include

  • Capacity selection: Through TR selection
  • Model options: Single-phase and three-phase model options
  • Ducting length: With additional required accessories



How to Install VOLTAS Mini Sub 5 TR Ductable Air Conditioner



  1. Installation by Trained Technicians:
  • Only certified HVAC technicians should perform installation work according to this requirement.
  • The installation procedure should follow the VOLTAS standards for installation according to this requirement.



  1. Ceiling Preparation & Site Inspection:
  • Inspect the slab strength to support the indoor unit weight
  • Finalize indoor unit position above false ceiling
  • Check that there is enough space for:
    • Air circulation
    • Filter cleaning
    • Routine maintenance
  • The suspension points must be marked correctly to achieve proper alignment which needs to be done according to the specified requirements.





  1. Bracket Fixing & Suspension Arrangement:
  • Attach strong anchors to the concrete slab.
  • Install threaded rods to suspend the item.
  • To lessen vibration, use rubber pads.
  • To stop drainage, align rods horizontally.



  1. Indoor Unit Mounting & Duct Connection
  • Use suspension rods to firmly mount the indoor unit.
  • To stop movement, tighten the lock nuts.
  • To improve airflow, use insulated GI ducts.
  • To stop leaks, seal all duct junctions.
  • Attach the drain pipe to the downhill slope.
  • To stop condensation, insulate the drain pipe.



  1. Outdoor Unit Placement:
  • Set the outdoor unit on a surface that doesn't vibrate.
  • Make use of a metal stand or concrete base.
  • To ensure enough air circulation, maintain clearances.
  • Keep technician access clearances up to date.
  • Steer clear of confined areas and heat sources.



  1. Refrigerant Piping and Electrical Wiring System:
  • Use copper piping with the diameter indicated by the manufacturer.
  • Insulate the suction and liquid lines independently.
  • Take care when brazing to avoid oxidation.
  • Cables should be routed through approved protective conduits.
  • For cable pathways, refer to the wiring diagram.
  • For electrical protection, make sure you are properly earthing.
  1. Vacuuming & Dehydration:
  • Attach the vacuum pump to the service ports.
  • Empty the pipes of moisture and air.
  • To ensure compressor safety, create a deep vacuum.
  • Avoid efficiency loss and ice development.



  1. Testing, Commissioning & Performance Check:
  • Carefully inspect the system for leaks of refrigerant.
  • Check the values of the suction and discharge pressures.
  • Check the airflow via diffusers and ducts.
  • Evaluate consistent cooling throughout the conditioned area.
  • Look for obstructions in the condensate drain flow.
  • Check the noise and vibration levels.



  1. Wired Controller Installation & Calibration:
  • Install the controller and attach the cord to the terminal.
  • Adjust the fan speed, temperature, and mode.
  • For precise sensing, calibrate the thermostat.
  • Show the end user the fundamental controls.
