The Samsung 360 cassette AC and Samsung ceiling AC both stand out truly and uniquely in style. Samsung one way cassette AC and 4-way cassette ACs; all units were built for extraordinary comfort with fast cooling and controlled noise levels.
The Samsung cassette air conditioner has various model options, such as Samsung round cassettes, Samsung ceiling air conditioner, and Samsung 360 air conditioners designed for easy ceiling fitting. The systems are offered in capacities and configurations, including 1-way, 4-way, and circular airflow technologies that spread the cooling evenly without causing drafts.

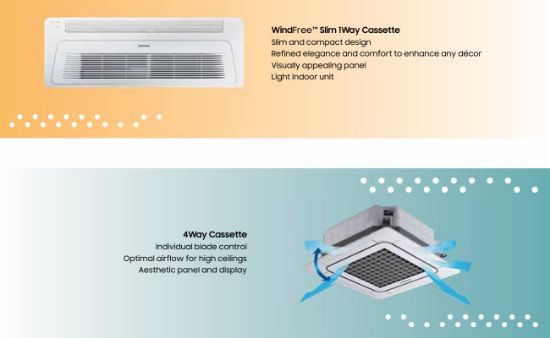

- 360 Cassette AC (Samsung 360 Air Conditioner)
- Winfree™ Slim 1-Way Cassette AC
- 4-Way Cassette AC
Samsung Cassette Air Conditioners are the ultimate option for stylish, economical, and powerful indoor climate control. For commercial spaces or your own home, Samsung's advanced ceiling-mounted systems offer a wonderful combination of performance and elegant aesthetics.
Samsung Cassette Air Conditioner Applications
- Suitable: Commercial and Residential use
- Compact design: Saves space
- Energy efficient: With low power consumption
- Complement: The look of any room
- Suits any environment demands: With performance and style
- Top-notch: Air conditioning solution for the ceiling
- Combining: Elegant design with practically silent operation
- Efficient cooling: With innovative features
- Comes equipped: With a Samsung 360 cassette with circular airflow
- Slim: Stylish 1-way cassette AC
- Suited for: Elegant homes and contemporary offices
- Even cooling: Wall clutter is gone
- Comfort: Space-saving innovation
Samsung Cassette Air Conditioner Key Features:
360 Cassette AC (Samsung 360 Air Conditioner)
- Modern Round Design
- Circular Curve to Prevent Chilling
- Energy-efficient Inverter Technology
- Multiple Cooling Options (3.5 kW to 15.5 kW)
Winfree™ 1-Way Cassette AC
- Sensible look, slim fits for ceilings
- The appealing Samsung air conditioner ceiling panel design
- With quiet performance
- 5-ton and 2-ton models
4-Way Cassette AC
- Blade Control: Targeted air flow zones
- Ideal High Ceilings: Cooling optimized for large areas
- Energy Efficient: Very low power consumption
Samsung Cassette Air Conditioner Benefits:
- All-Round Cooling: Whether it is the Samsung round cassette or a 1-way unit, air goes into every corner.
- There are No Cold Drafts: The 360 degree cassette AC gives good cooling without direct air blowing.
- Stylish Ceiling Integration: The panels come in attractive shapes and finishes.
- Less Noise: Elegant low noise levels of 28 dB(A) are especially achieved in Winfree™ technology-based units.
- Energy Saving: High energy efficiency with up to a 4-Star BEE rating in selected models.
- Flexible Installation: With long piping support and adjustable ceiling panel sizes.
Indoor Unit Samsung Cassette Air Conditioner Technical Specifications:

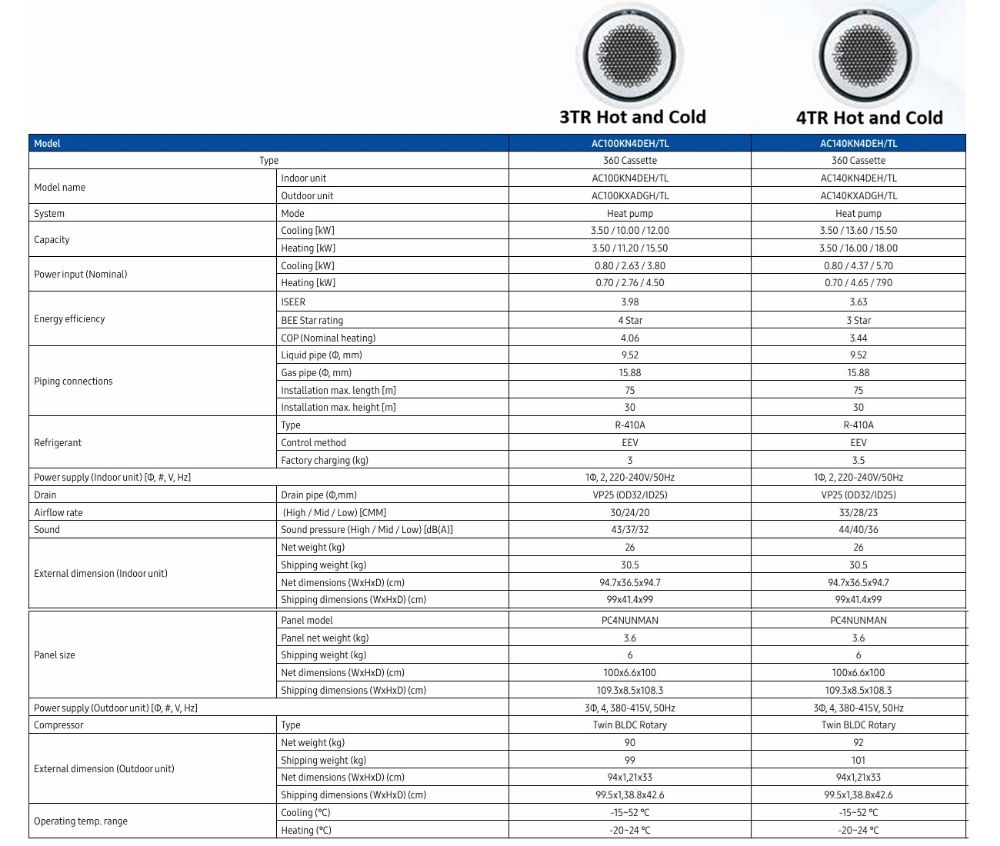

1. 360 Cassette Samsung AC (Model: AC100KN4DEH/TL)
- Type: 360 Cassette
- Cooling Capacity: 10.00 kW
- Airflow: 30 / 24 / 20 CMM (High/Mid/Low)
- Sound Pressure is 43 / 37 / 32 dB(A): High/Mid/Low
- Net Weight(kg): 26kg
- Weight in Shipping: 30.5
- (W x H x D) Dimensions are: (94.7 x 36.5 x 94.7 cm)
- Panel Model: PC4NUNMAN
- Panel Net Weight: 3.6 kg
- Panel Dimensions: 100 x 6.6 x 100 cm

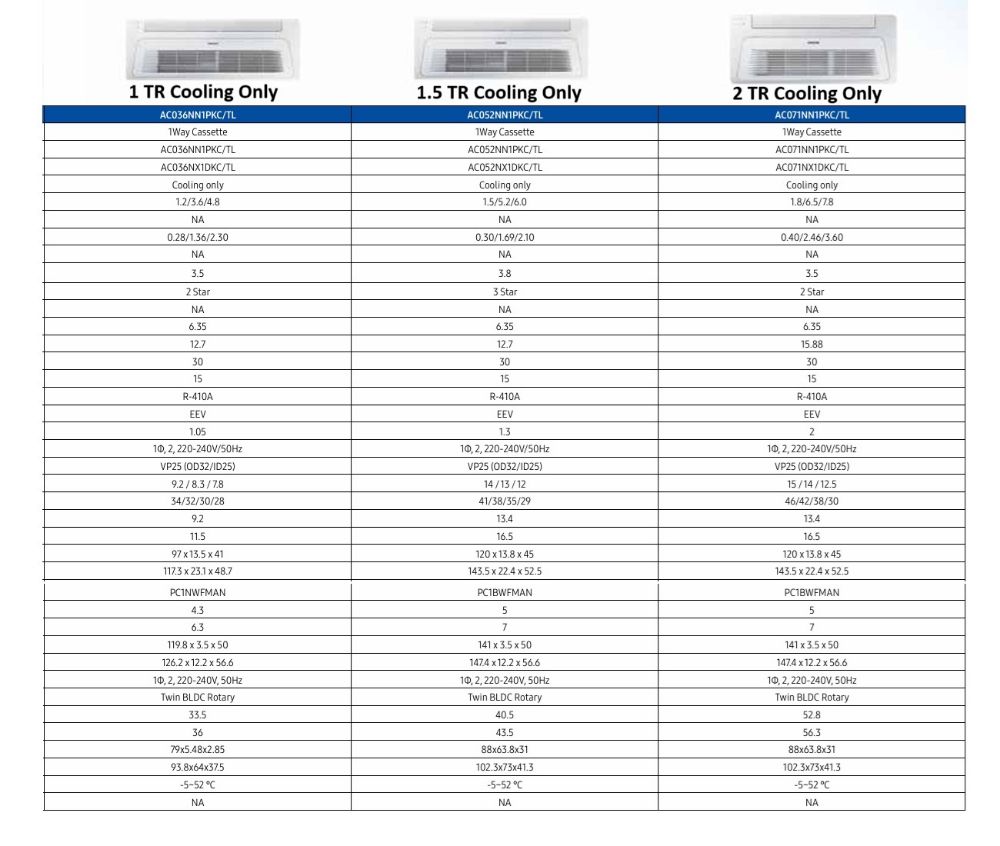

2. Samsung 1 Way Cassette AC (Model: AC052NN1PKC/TL)
- Type: Winfree™ 1 Way Cassette
- Cooling Capacity: 5.2 kW
- In CMM 14 / 13 / 12: Airflow Rate
- In (dB(A)) 41 / 38 / 35 / 29: Sound Pressure
- Net Weight(kg): 13.4
- In (kg) Shipping Weight: 16.5
- In (centimeters) the Dimensions are: 120 CM x 13.8 CM x 45 CM
- Panel Model: PC1BWFMAN
- Panel Net Weight: 5 kg
- Panel Dimensions: 141 x 3.5 x 50 cm
3. Samsung 4 Way Cassette AC (Model: AC071NN4DKC/TL)
- Type: 4 Way Cassette
- Cooling Capacity should be: 6.8 (kW)
- Airflow Rate should be: 25 / 22 / 18 CMM
- Sound Press: 40 / 37 / 34 dB(A)
- Net Weight should be: 18 Kg
- Shipping Weight should be: 21.5 Kg
- Panel Model: PC4NUFMAN
- Panel Net Weight: 6.3 Kg
- In cm, Panel Dimensions are: 95 x 4.8 x 95 cm
Samsung Cassette Air Conditioner Outdoor Unit Technical Specifications:
1. Samsung 360 Cassette AC: Model- AC100KXADGH/TL
- In kW Power Input (Cooling)is: 2.63 kW
- Compressor: Twin BLDC Rotary
- Net Weight: 90 kg
- Dimensions are: 94 x 121 x 33
- The cooling in °C Operating Temperature Range is: -15 ~ 52°C
- The Refrigerant will be: R-410A
- Charge Factory: 3 kg
- Power Supply should be: 3Φ, 4-wire, 380-415V, 50Hz
2. Samsung 1 Way Cassette AC: Model-AC052NX1DKC/TL
- Power Input (Cooling)should be: 1.69 kW
- Compressor should be: Twin BLDC Rotary Compressor
- In kilogram, the Net Weight is: 40.5 kilograms
- In kg, Shipping Weight is: 43.5 kg
- In degree °C Operating Temperature Range is: -5 ~ 52°C degrees Celsius
- In A, Refrigerant is: R-410A
- Factory Setting: 1.3 kg
- Power should be: 1Φ, 2-wire, 220-240V, 50Hz
3. Samsung 4 Way Cassette AC: Model No. - AC071NXADKC/TL
- Power Input should be: 1.96 kW (Cooling)
- Compressor Type should be: Twin BLDC Rotary
- Net Weight should be: 48.5 kg
- Shipping Weight should be: 52 kg
- Dimensions are: 88 x 79.8 x 31 cm
- Operations Temp Range should be: -15~52 °C
- In A, the Refrigerant is: R-410A
- Factory Charged: 2 kg
- In V and Hz Power Supply are: 1Φ, 2 wires, 220-240V, 50Hz
Why Should One Choose the Samsung Cassette AC?
- Premium Design Meets Technology
Samsung circular and 4-way units are not just performance-oriented; they also serve as a visual highlight, nicely setting any ceiling space.
- Another Level of Winfree™ Technology
The Winfree™ mode acts by gently diffusing cool air through numerous micro-holes, shielding one from the nuisance of direct cold air: it is as if the cool air itself is comforting the room.
- Energy-Saving Smart Inverter
Drastically reduces energy bills by maintaining a stable temperature without the on-off cycles.
- Quiet Operation for Peaceful Settings
Due to their very low decibel rating, these are very suitable for study rooms, conference rooms, and bedrooms.
- Different Units for Every Need
From compact 1.5-ton units to heavy-duty 15.5 kW units, every need is met by a Samsung Cassette Aircon.
With detachable panels, optional purification filters, and smart controllers, the units were designed for ease of use.
Price Range:
- The Price for Samsung 1-Way Cassette Air Conditioner (1.5 TR or Ton):
- Approximate Samsung 1 way cassette AC price: 57,000 – 63,000 Rs/-
- Best for small rooms and compact spaces.
- Energy-efficient model featuring a sleek Winfree design.
- The Price for Samsung 1-Way Cassette Air Conditioner (2 Ton or TR):
- Approximate Samsung cassette AC 2-ton Price: ₹118,000 Rs/-
- It is perfect for a mid-sized residential or commercial room.
- Featuring the stylish panel and quiet operation.
- The Price for Samsung 4-Way Cassette AC (2 TR or Ton):
- Approximate Samsung 4 Way Cassette Air Conditioner Price: 84,000-130,000 Rs/-
- This one is the best option for conference rooms, lounges, and offices.
- Samsung 360-degree Cassette Air Conditioner (3 Ton to 4 Ton) Price
- Approximate Price range for Samsung 360 cassette AC: Rs 162000-190000
- Balances aesthetics coupled with the latest cooling performances.
- Samsung Round Cassette AC Price
- Approximate Samsung round air conditioner Price: Available upon request (custom configurations are available based on capacity and features).
- Perfect for Pia Interior projects and large commercial spaces.
How to Install a Samsung Cassette AC
Installation must be done by professionals.
Ceiling Preparation: The first step should be to identify the mounting area in the ceiling grid or drywall.
Thereafter, the bracket needs to be installed: This is the second step. Installation of a ceiling bracket which will hold the indoor unit.
Indoor Unit Mounting: Place the indoor unit, connect refrigerant pipes, and drain.
Outdoor Unit Setup: Lift the outdoor unit on a levelled surface, usually on a rooftop or balcony.
Piping and Wiring: Do the piping and electrical wiring between units. Always insulate and seal.
Vacuum and Charge: Take air/moisture away and charge the system with refrigerant as per requirement.
Testing: Power on. Check for leaks, the flow of air, and cooling performance.
Panel Finishing: Fix a face panel according to taste- (Winfree™, Classic, Purification, etc.).
Remote Arrangement: Pair and test the wired/wireless controller.
