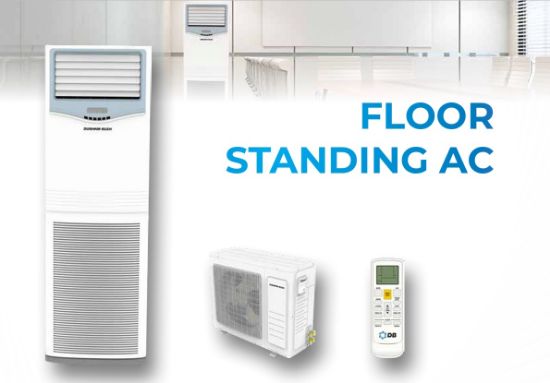

Floor Standing AC

This Dunham Bush floor standing AC series provides strong and efficient cooling. Available in both fixed-speed and inverter cooling-only types, it provides quick comfort and consistent performance even in severe Indian weather conditions. This Dunham Bush floor standing air conditioner is perfect for homes, workplaces, and commercial environments because of its elegant, vertical design and modern technology.

Ranging from 7000W to 14100W cooling capacity, these air conditioners have a strong airflow, quiet operation, and great longevity with copper components. Thanks to its modern design and features like Bluefin hydrophilic evaporators and a wireless remote control, this Dunham Bush floor standing AC (Tower AC) is a reliable and stylish choice.

Dunham Bush Floor Standing AC - Key Features:

• Blue Fin Evaporator—Rustproof, enhances heat transfer.
• Insta Cool Rotary Compressor—Fast cooling efficiency.
• Reliable Capacitor—Boosts safety and longevity.
• Effortless control at your fingertips.
• Durable, effective, and rustproof coils.
• Reliable performance in high temperatures.
• Versatile Setup—Extended piping reach (up to 30m) and height (up to 15m).

Technical Specifications of Floor Standing Air Conditioner:

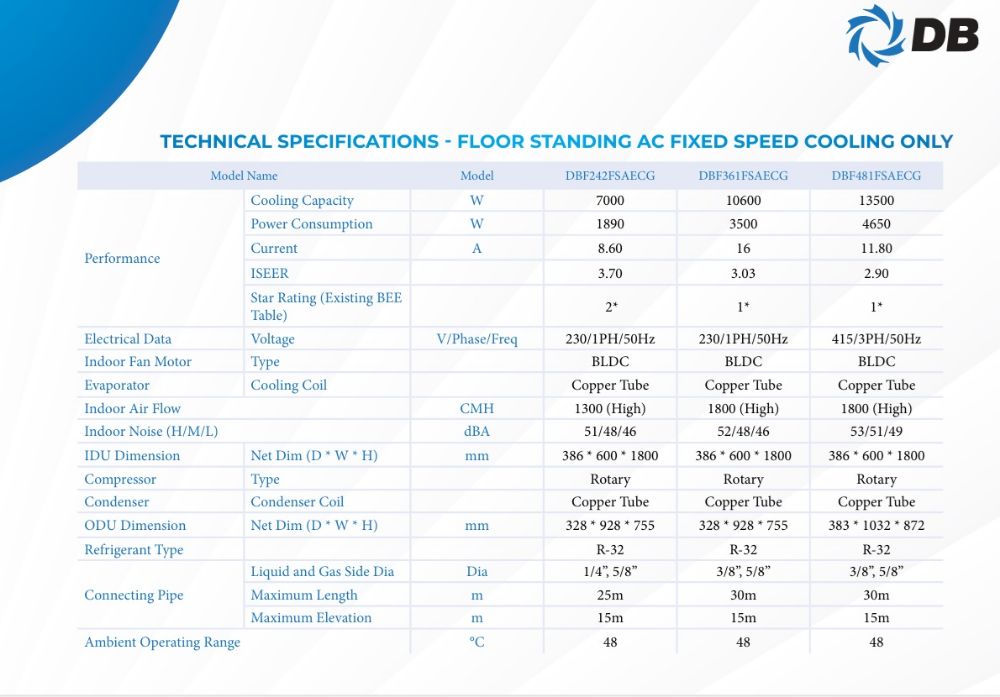

Floor Standing AC - Fixed Speed (Cooling Only 2 TON, 3 TON, 4 TON):

• Model Numbers: DBF242FSAECG, DBF361FSAECG, DBF481FSAECG
• Cooling Capacity (W): 7000 | 10600 | 13500
• Power Consumption (W): 1890 | 3500 | 4650
• Current (A):60 | 16 | 11.80
• ISEER:70 | 3.03 | 2.90
• Star Rating: 2* | 1* | 1*
• Indoor Air Flow (CMH): 1300 | 1800 | 1800
• Indoor Noise (dBA): 51/48/46 | 52/48/46 | 53/51/49
• Indoor Unit Size (mm): 386 × 600 × 1800
• Outdoor Unit Size (mm): 328 × 928 × 755 | 328 × 928 × 755 | 383 × 1032 × 872
• Voltage: 230V/1PH/50Hz | 415V/3PH/50Hz
• Refrigerant: R-32

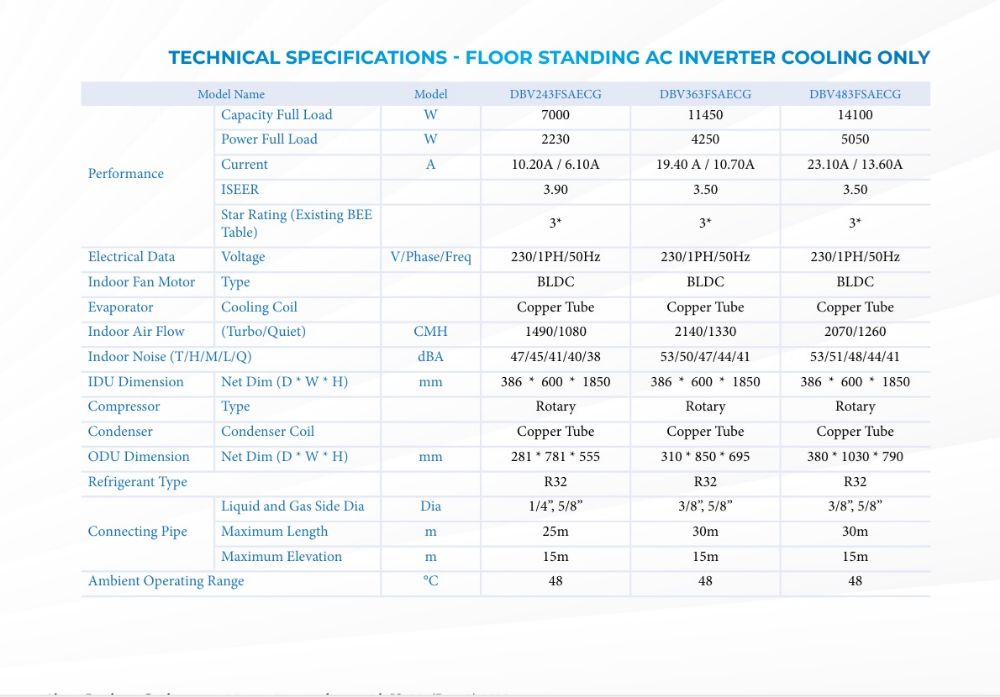

Floor Standing AC - Inverter (Cooling Only 2 TR, 3 TR, 4 TR):

• Model Numbers: DBV243FSAECG, DBV363FSAECG, DBV483FSAECG
• Cooling Capacity (W): 7000 | 11450 | 14100
• Power Consumption (W): 2230 | 4250 | 5050
• Current (A):2/6.1 | 19.4/10.7 | 23.1/13.6
• ISEER:90 | 3.50 | 3.50
• Star Rating: 3* (All Models)
• Indoor Air Flow (CMH): 1490/1080 | 2140/1330 | 2070/1260
• Indoor Noise (dBA): 47–38 | 53–41 | 53–41 (Turbo to Quiet)
• Outdoor Unit Size (mm): 281 × 781 × 555 | 310 × 850 × 695 | 380 × 1030 × 790
• Voltage: 230V/1PH/50Hz
• Refrigerant: R-32

DB Smart - Super Floor Standing AC (6.3 Ton & 8 Ton)

The DB Smart - Super Floor Standing AC is a high-performance, complete DC inverter air conditioning system designed for large-scale cooling and heating requirements. These units provide strong air delivery, silent performance, and energy efficiency. They are available in cooling-only and heat pump configurations and are ideal for commercial spaces, offices, banquet halls, hotels, and public venues.

Super Floor standing is available in capacities starting from 6.3 tons (22–23.5 kW) to 8.0 tons (28–29.5 kW). The Dunham Bush Tower AC price depends on its capacity.  It offers a flexible temperature control system for both heating and cooling. Energy efficiency is ensured by long-distance airflow.

Key Features:

• Energy saving and efficient performance.
• Heat Pump Variant: Provides cooling and heating features.
• Long-Distance Air Supply: Effective airflow across big areas.
• Reduces moisture without overcooling.
• Recover settings upon a power cut using the auto-restart function.
• Prevents chilly drafts while heating with the anti-cold air function.
• Durable and corrosion-resistant high-efficiency copper-aluminum coils.
• Remote-Controlled Operation: Simple and smart control.
• Scroll & Rotary Compressors: Strong and dependable cooling.

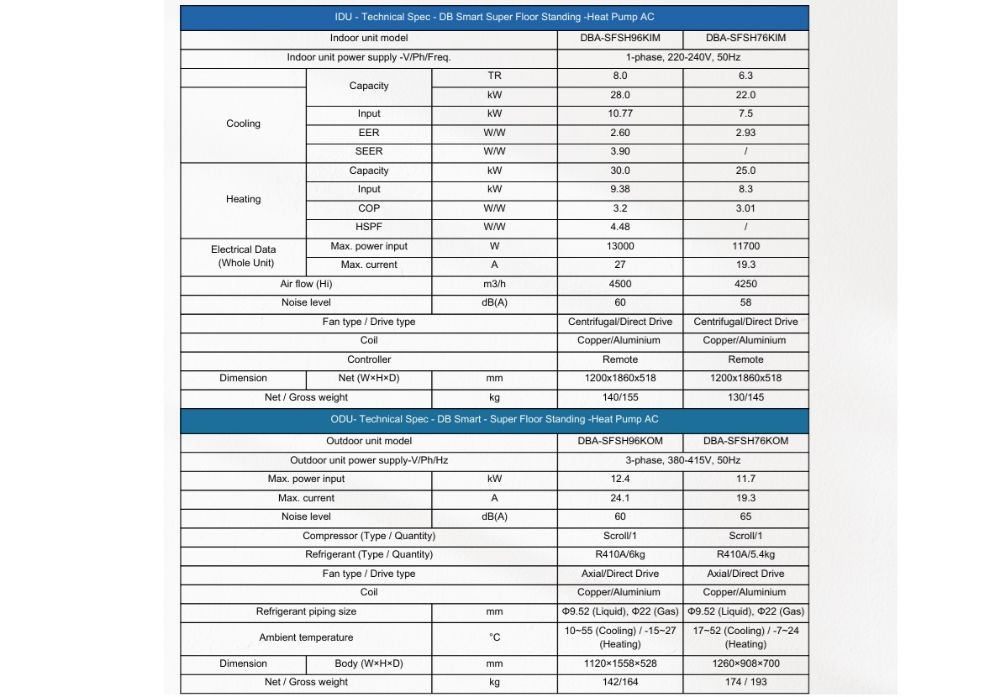

DB SMART - SUPER FLOOR STANDING AC (HEAT PUMP)

Tower AC Indoor Unit (IDU)

Model Numbers:

• DBA-SFSH76KIM (6.3 Ton)
• DBA-SFSH96KIM (8 Ton)

Specifications:

• Cooling Capacity (kW): 22 (6.3T), 28 (8T)
• Cooling Input (kW):5, 10.77
• Heating Capacity (kW): 25, 30
• Heating Input (kW):3, 9.38
• EER (W/W):93 (6.3T), 2.60 (8T)
• SEER (W/W): /, 3.90
• COP (Heating):01 (6.3T), 3.2 (8T)
• HSPF (W/W): /, 4.48
• Air Flow (Hi): 4250 m³/h (6.3T), 4500 m³/h (8T)
• Noise Level (dB): 58, 60
• Fan Type: Centrifugal / Direct Drive
• Coil Material: Copper / Aluminum
• Controller: Remote
• Dimensions (W×H×D): 1200×1860×518 mm
• Net/Gross Weight (kg): 130/145 (6.3T), 140/155 (8T)

Tower AC Outdoor Unit (ODU)

Model Numbers:

• DBA-SFSH76KOM (6.3 Ton)
• DBA-SFSH96KOM (8 Ton)

Specifications:

• Max Power Input (kW):7, 12.4
• Max Current (A):3, 24.1
• Compressor Type: Scroll (1 Unit)
• Refrigerant: R410A – 5.4 kg (6.3T), 6 kg (8T)
• Noise Level (dB): 65 (6.3T), 60 (8T)
• Fan Type: Axial / Direct Drive
• Piping Size: Diameter of 9.52 mm (Liquid Line), Diameter of 22 mm (Gas Line)
• Ambient Temperature Range:
  • Cooling: 17–52°C (6.3T), 10–55°C (8T)
  • Heating: -7–24°C (6.3T), -15–27°C (8T)
• Dimensions (W×H×D):
  • 1260×908×700 mm (6.3T)
  • 1120×1558×528 mm (8T)
  •
• Net/Gross Weight (kg): 174/193 (6.3T), 142/164 (8T)

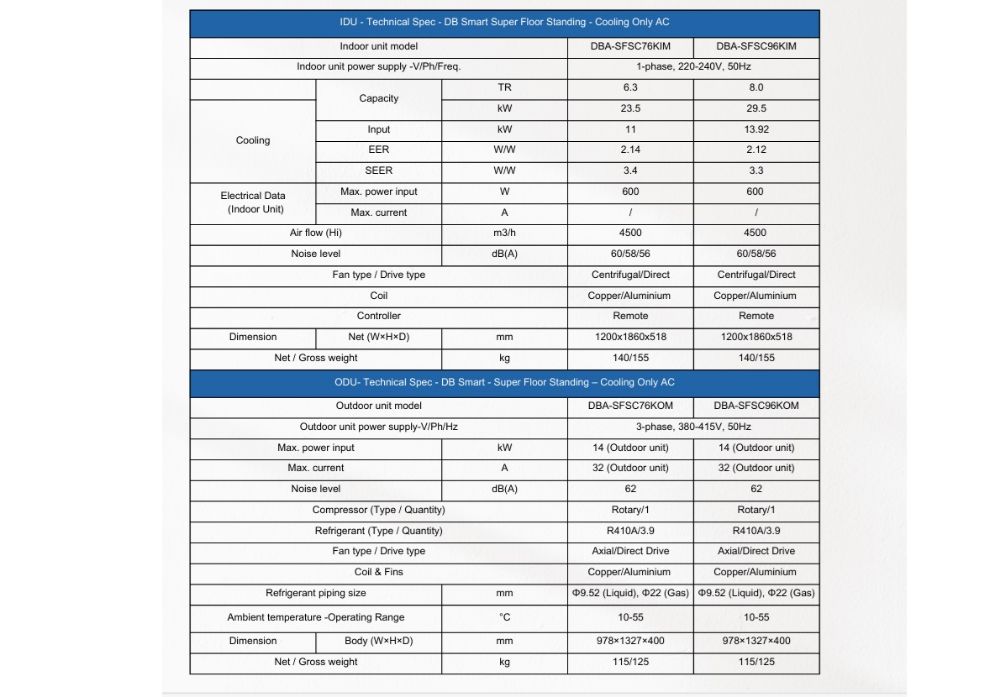

DB SMART - SUPER FLOOR STANDING AC (COOLING ONLY)

Indoor Unit (IDU) Super Floor Standing - Cooling Only AC

Model Numbers:

• DBA-SFSC76KIM (6.3 Ton)
• DBA-SFSC96KIM (8 Ton)

Specifications:

• Cooling Capacity:5 kW (6.3 Ton) & 29.5 kW (8 Ton)
• Power Input (kW): 11 (6.3T), 13.92 (8T)
• EER (W/W):14, 2.12
• SEER (W/W):4, 3.3
• Air Flow (Hi): 4500 m³/h (both)
• Noise Level (dB): 60/58/56 (both)
• Fan Type: Centrifugal / Direct Drive
• Coil Material: Copper / Aluminium
• Controller: Remote
• Dimensions (W×H×D): 1200×1860×518 mm
• Net/Gross Weight (kg): 140/155 (both)

Outdoor Unit (ODU) Super Floor Standing—Cooling Only AC

Model Numbers:

• DBA-SFSC76KOM (6.3 Ton)
• DBA-SFSC96KOM (8 Ton)

Specifications:

• Max Power Input (kW): 14 (both)
• Max Current (A): 32 (both)
• Compressor Type: Rotary (1 Unit)
• Refrigerant: R410A / 3.9 kg
• Noise Level (dB): 62 (both)
• Fan Type: Axial / Direct Drive
• Piping Size: Of 9.52 mm (for Liquid Pipe), Dia. Of 22 mm (for Gas Pipe)
• Ambient Temp Range: 10–55°C
• Dimensions (W×H×D): 978×1327×400 mm
• Net/Gross Weight (kg): 115/125 (both)

How to Install the Dunham Bush Floor Mounted Air Conditioners:

Correct installation of the Dunham Bush floor-mounted air conditioner guarantees optimal performance, safety, and energy savings.

1. Indoor Unit Installation (IDU)

• Positioning:
  • Place the Dunham Bush Tower air conditioner in the center of the room on a level floor.
  • Maintain minimum clearances:
    • Sides: 300 mm
    • Top: 500 mm
    • Front (Air Flow): 2000 mm
  • Anchoring:
    • Use rubber pads to minimize noise.
    • Ensure the rear airflow is unobstructed.
  • Drainage:
    • Connect the condensate drain pipe and use a slight downward slope.
    • Ensure proper insulation to prevent dripping.
  • Wiring:
    • Use a separate 1-phase 220–240V, 50Hz power supply.
    • Ensure grounding and use surge protection.

2. Outdoor Unit Installation (ODU)

• Location:
  • Keep in a shaded, ventilated area away from sunlight.
  • Ensure easy access for maintenance.
• Mounting:
  • Mount on a concrete slab or anti-vibration bracket.
  • Maintain clearances:
    • Back & Sides: ≥300 mm
    • Front (Fan Side): ≥1000 mm
  • Refrigerant Connection:
    • Connect copper pipes to liquid (Φ9.52 mm) and gas (Φ22 mm) lines.
    • Ensure leak testing with nitrogen and proper insulation.
  • Power Supply:
    • Use a 3-phase 380–415V, 50Hz line with a proper MCB.
    • Ensure a separate circuit with appropriate earthing.
