Dunham Bush Ductable AC

The Dunham Bush ductable air conditioner is developed for small and large settings and is engineered to provide energy-efficient, stable, and strong cooling. Dunham Bush ductable air conditioner puts sophisticated temperature management at your fingertips. These ductable air conditioners fit well into a range of business and residential settings with their sleek, basic appearance and exceptional cooling performance. Therefore, they provide us steady comfort and dependability.

Whether you are building a mall, a boutique hotel, a commercial office, or a luxury home, Dunham-Bush offers a ductable air conditioning system to meet the precise cooling requirements of your space.

Available in two core variants:

• DUCTABLES LOW STATIC
• DUCTABLES HIGH STATIC

1.   Dunham Bush Ductables – Low Static

Low Static Ductable AC ensures silent, efficient cooling. Dunham Bush was designed for compact areas with short duct lengths and little outside static pressure. These devices are perfect for:

• Home spaces
• Efficient workspaces
• Luxury accommodations
• Compact living
• Shops

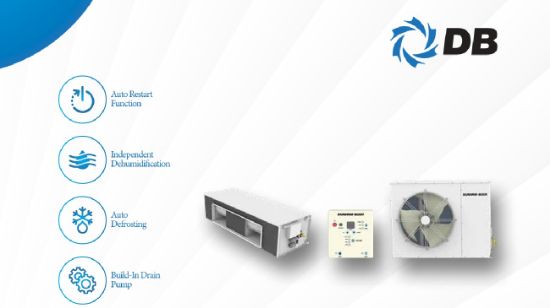

Dunham Bush ductables (Low Static Type) - Key Features:

• Silent operation, Low fan noise ensures comfort.
• Wired Controller, Experience-tailored temperature control.
• Integrated pumps prevent leakage issues.
• Ice buildup prevention for performance.
• Humidity control without excess cooling.
• Auto Restart, Restores settings after failure.
• Space-saving design for tight areas.

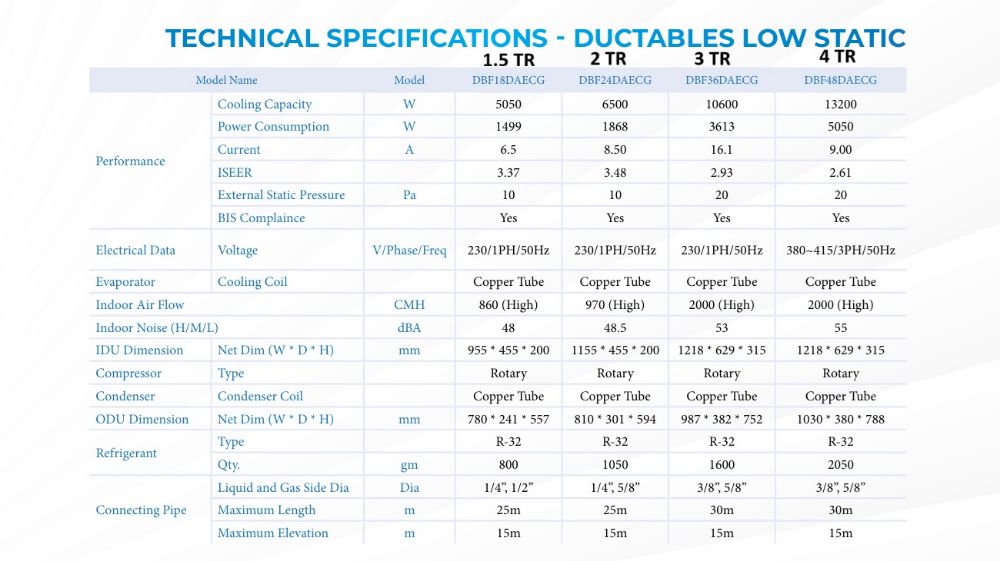

Technical Specifications of Dunham Bush ductables (Low Static)

• Cooling power: Ranges from 5.05 to 13.2 kW (5,050W - 13,200W).
• Energy usage: 1499W to 5050W
• The current draw Ranges from 6.5A to 16.1A.
• ISEER Ratings: 2.61 to 3.48
• Static pressure: Ranges from 10-20 Pa.
• Refrigerant: R-32, eco-friendly choice
• Type of compressor: Rotary
• Copper tube coils: Ensure durability and efficiency.
• Noise indoors: Minimum 48 dBA
• Air circulation: Maximum 2000 CMH
• Optimal piping length: 25m - 30m
• Highest point: 15 meters
• Models: DBF18DAECG, DBF24DAECG, DBF36DAECG, DBF48DAECG

2.   Dunham Bush Ductables – High Static

These ACs deliver strong airflow, ensuring effective air distribution. Designed for large-scale cooling uses with lengthy or complicated ducting, the High Static Ductable AC range is perfect for:

• Factories
• Shopping centers
• Conventional halls
• Business structures
• Storage facilities

Key Features of High Static Dunham Bush Ductables

• Robust cooling for extreme conditions.
• Longer ducts need strong support.
• Wired controller
• Manage temperature zones efficiently.
• Efficient water removal is guaranteed.
• Humidity control without extra cooling.
• Downtime is minimized and there is a boost in reliability because of the automated systems.
• Efficient, durable, long-lasting performance.

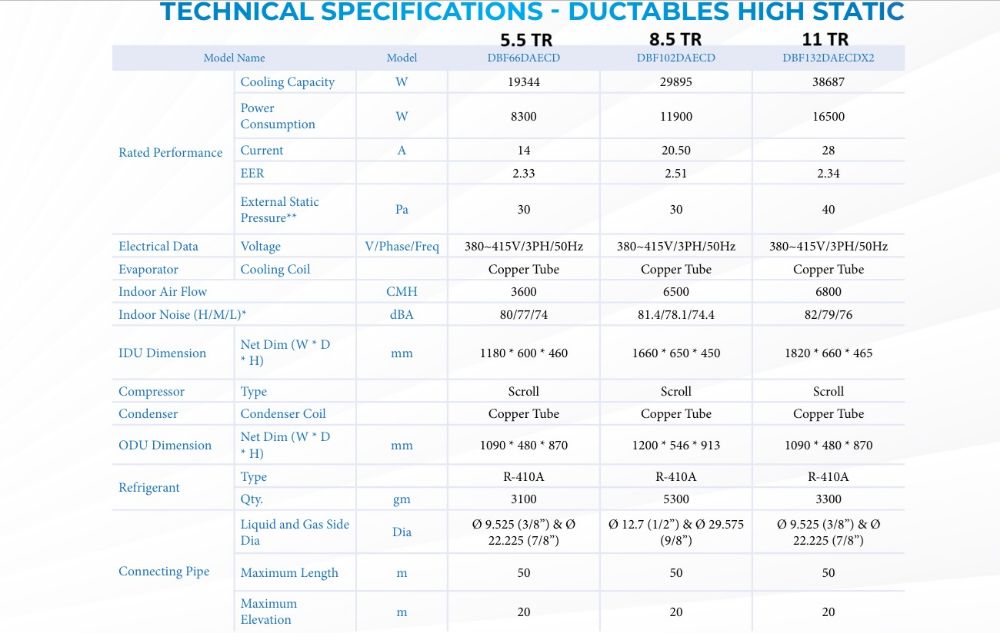

Technical Specifications of High Static Dunham Bush Ductables

• Cooling Capacity: 19.34 kW - 38.68 kW (19344W - 38687W)
• Power Use: 8300W - 16500W
• Draw now: 14A to 28A
• EER Ratings: 2.33 to 2.51
• Pressure: 30 to 40 Pa External Static
• Refrigerant Type: R-410A (renowned for efficient performance and environmental safety)
• Scroll: It is the kind of compressor
• Copper Tube Coils: Efficient heat transmission and durability
• Indoor Noise Levels: 74 dBA to 82 dBA
• Indoor Air Flow: As high as 6800 CMH
• Piping length maximum: 50m
• Highest Elevation: 20m
• Model numbers: DBF66DAECD, DBF102DAECD, DBF132DAECDX2

How To Install Dunham Bush Ductables Air Conditioner:

Proper Installation ensures the optimal performance and lifetime value of your DB Ductable AC. The indicated actions and factors to consider are as follows:

1. Planning and Site Survey:

• Evaluate Space Needs: Determine zoning, duct lengths, room layout, and cooling needs.
• Choose a Suitable Model: Depending on cooling capacity and static pressure needs.

2. Installing the Indoor Unit:

• Put it inside the fake ceiling or a specific utility room.
• Use vibration-isolating hangers to fasten.
• Make sure there is sufficient space for air intake and maintenance access.

3. Ductwork:

• Low Static Units: Shorten ducts and limit twists to prevent pressure drops.
• High Static Units: Can handle many vents on lengthy and branching ducts.
• Insulate ducts to stop condensation and energy loss.
• Guarantee sealed connections to prevent leaks.

4. Outside Unit:

• Distant from the Unit Position, place the object on a surface that eliminates vibrations and maintains stability, such as the ground, the wall bracket, or the roof.
• To effectively disperse heat around the device, ensure that there is sufficient ventilation.
• Avoiding particular spots is the best method to protect oneself from exposure to circumstances. situations

5. Piping:

• Use the pipe size appropriate for the model (for example, 1/4", 1/2", etc.).
• Make sure that you do not go above the maximum height and length that is recommended.
• It is recommended that the needed insulation be installed on top of the premium copper pipes.

6. Drainage:

• A connection should be created between the built-in pump and the drain output.
• The drain pipe needs to be slanted downward to guarantee that gravity is the primary factor in determining the flow.
• When necessary, a U-trap should be used to prevent water from flowing in the other direction.

7. Connections:

• Make use of an appropriate circuit breaker that is situated on a separate power line to connect electrically.
• Every component must be grounded to eliminate any potential electrical risks.
• By following the model, which may specify a single phase or three phases, the proper voltage phase can be determined.

8. Controller:

• When installing the wired controller, the user's convenience should be the most important consideration.
• It is necessary to adjust both the timer and the temperature of the room to calibrate.
• Certain capabilities, such as mode, fan speed, and temperature control, are presently being assessed for effectiveness.

9. Final Step:

• It is necessary to vacuum the refrigerant lines once they have been charged.
• Make sure there is sufficient ventilation in each zone and check for any leaks that may be present.
• Do not forget to note the drop in both the operating temperature and the current drawn.

Reasons to Select DB Ductable AC

• Flexible for home and business.
• Optimal efficiency ensures energy savings.
• Eco-friendly: Employs R-32, R-410A.
• Simple upkeep: Simple controls, accessible parts.
• High-quality materials ensure durability.

Dunham Bush Ductable AC Price:

Ductable AC cost varies by capacity, static pressure category (Low or High), and installation requirements. Dunham Bush ductable split AC, on the other hand, offers a high return on investment because to its durability, energy efficiency, and unique features. When calculating costs, take into account:

• Materials for insulation and ducting
• Cost of labor for installation
• Extra electrical system

Improvements in control and automation
