Chilled Water Cassette Unit

Key Features of Samsung Chilled Water Cassette Unit

• Water Cooling: Economical to operate and uses fewer refrigerants.
• Air Flow Options: 360°, 4-way, or 1-way air way.
• Winfree™: Gentle air without cold drafts
• Heat Pump: Heating and cooling practically all year round
• Drain Pump: Smooth drainage for ceiling units
• Quiet Performance: Ultrasonic quiet voice, 29dB (A)
• Compact Design: Smooth panels for a modern ceiling

Applications of Samsung Chilled Water Cassette Units

• Office buildings
• Hospitals
• Universities
• Retail stores and showrooms
• Hotels and restaurants
• Data centers and control rooms
• Modern homes and apartments

Benefits of Using Chilled Water Cassette AC

Energy-Efficient

Using water as a means, it has little or no refrigerant-related effect and is very power-efficient.

Improved Air Distribution

In settings of 360° and 4-way, air moves in a very even manner in the room, preventing the formation of hot/cold areas.

An Attractive Aesthetic

The flat panels and hidden installation maintain the ceilings' clean look.

Healthy Air Quality

With optional top-grade filters for dust removal.

Quiet Comfort

This is a big advantage especially in noise-sensitive environments, i.e., libraries , conference rooms, and bedrooms.

Large on a global scale.

Numerous units can be connected to chilled water systems for larger buildings.

Samsung Chilled Water Cassette AC- Indoor Unit Technical Specifications

General:

• Heat Pump (Heating and Cooling)
• Three options are Single Phase, 220-240V, 50/60 Hz.
• 1-way, 4-way and 360° Cassette Models.

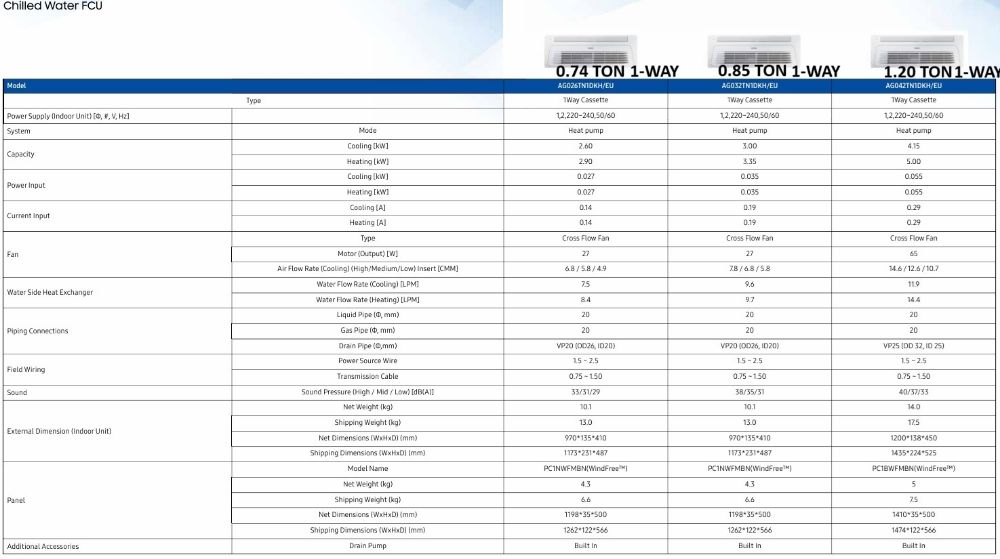

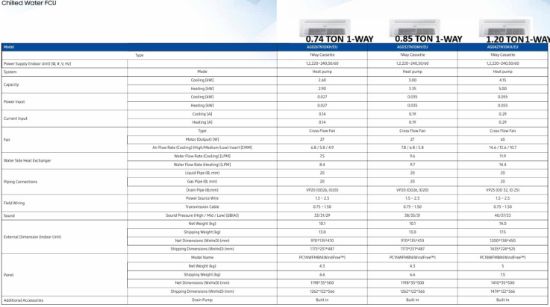

1. Model Name: AG026TN1DKH/EU (1 Way Cassette)

• Capacity (Cooling) kW: 2.60 kW
• Capacity (Cooling) kW: 2.90 kW
• (Cooling/Heating) Power Input: 0.027 kW
• Current Input: 0.14 A
• Fan Type: Cross Flow
• Fan Motor Output: 27 Watts
• Airflow: 6.8/5.8/4.9 CMM
• In dB(A), Sound Pressure Level: 33 / 31 / 29
• Cooling and Heating Water Flow Rate is: 7.5/8.4
• In mm, Drain Pipe: VP20, O.D. 26mm, I.D. 20mm
• (Width in mm x Height in mm x Depth in mm) Net Dimensions in are: 970 mm W x 135 mm H x 410 mm D
• Net Weight (kg): 10.1 kg
• Panel Model: PC1NWFMBN (Winfree™)
• Panel Dimensions are: 1198 × 35 × 500 mm
• Drain Pump: Yes, Built-in

2. Model Name: AG042TN1DKH/EU (1-Way Cassette)

• Capacity (Cooling) kW: 4.15kW
• Capacity (Heating) kW: 5.00 kW
• Power Input: 0.055 kW
• Current Input: 0.29 A
• Fan Type: Cross Flow
• Fan Motor Output is: 65 W
• Airflow Rate is: 14.6/12.6/10.7 CMM
• Sound Pressure Level dB(A): 40/37/33 dB(A)
• Water Flow Rate (LPM) is: 11.9 LPM (cooling),14.4(Heating)
• Drain Pipe(mm): VP25(OD 32mm, ID 25mm)
• Net Dimensions are: 1200× 138×450 mm
• Net Weight: 14.0 Kg
• Panel Model: PC1BWFMBN (Winfree™)
• Panel Dimensions are: 1410 mm × 35 mm × 500 mm
• Drain Pump: Yes, Built-in

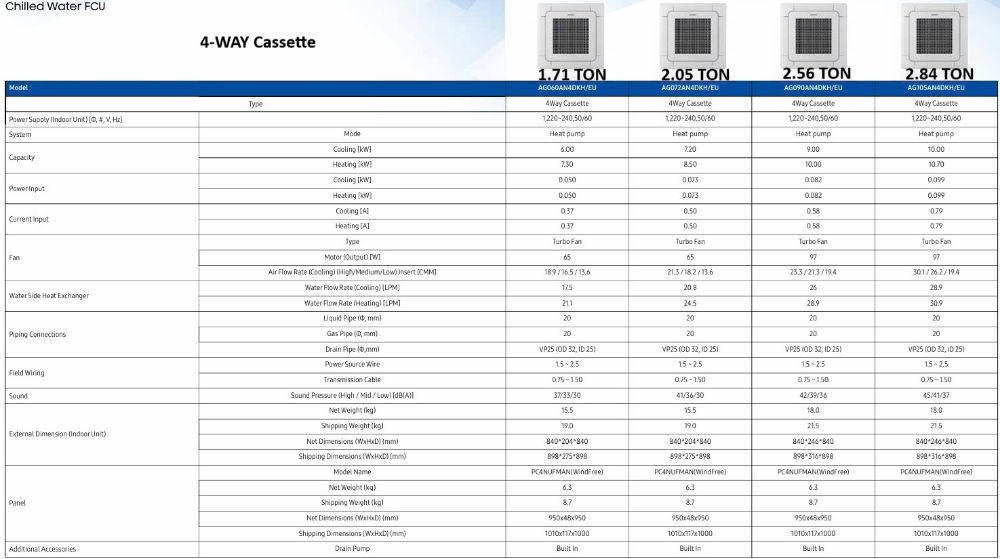

3. Model Name: AG060AN4DKH/EU (4-Way Cassette)

• Capacity (Cooling) kW: 6.00 kW
• Capacity (Heating) kW: 7.30 kW
• Electrical Power Input: 0.050 kW
• Electrical Current Input: 0.37 A
• Fan Type: Turbo Fan
• Fan Motor: 65 watts(output)
• Airflow Rate is: 18.9 / 16.5 / 13.6
• Sound Pressure Level dB(A): 37/33/30
• Water Flow Rate (Cooling): 17.9 (LPM)
• Water Flow Rate (Heating)(LPM): 21.1
• Drain Pipe(mm): VP25(OD 32mm, ID 25mm)
• Net Dimensions (W x H x D) (mm) are: 840*204*840
• Net Weight (kg): 15.5(kg)
• Panel Model: PC4BWFMBN (Winfree™)
• The Dimensions of the Panel are: 950 mm × 48 mm × 950 mm
• Drain Pump: Yes, Built-in

4. Model Name: AG090AN4DKH/EU (4-Way Cassette)

• Capacity (Cooling) kW: 9.00 kW
• Capacity (Heating) kW: 10.00 kW
• Power Input: 0.082 kW
• Current Input: 0.58 A
• Fan Type: Turbo Fan
• Fan Motor Output: 97 watts
• Airflow Rate is: 23.3/ 21.3/19.4
• Sound Pressure Level dB(A): 42/39/36
• Water Flow Rate (Cooling)(LPM): 26
• Water Flow Rate (Heating)(LPM): 28.9
• Drain Pipe(mm): VP25 (OD 32 mm, ID 25 mm)
• Net Dimensions are: 840 × 246 × 840 mm
• Net Weight: 18.0 kg
• Panel Model: PC4NUFMAN (Winfree™)
• Drain Pump: Yes, Built-in

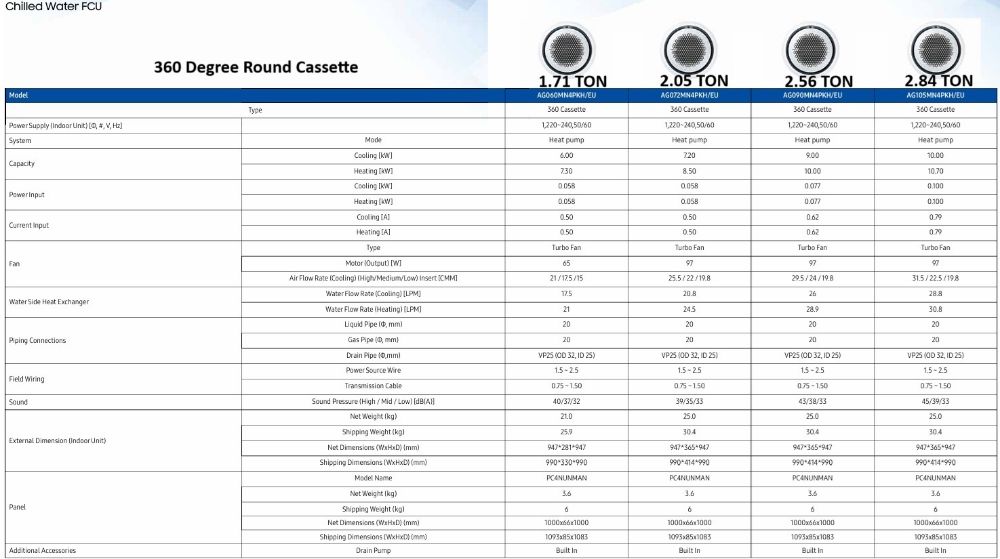

5. Model: AG105MN4PKH/EU (360 Cassette)

• Capacity (Cooling) kW: 10.00 kW
• Capacity (Heating) kW: 10.70 kW
• Power Input: 0.100 kW
• Current Input: 0.79 Amp
• Fan Type: Turbo Fan
• Fan Motor Output: 97 Watts
• (Cooling) Air Flow Rate that is measured in CMM (Cubic Meter per Minute) at (High/Medium/Low) speeds: 31.5 CMM / 22.5 CMM / 19.8 CMM
• Sound Pressure Level dB(A): 45 / 39 / 33 dB(A)
• Water Flow Rate (LPM) is: 28.8 (cooling), 30.8 (heating)
• Drain Pipe(mm): VP25 (32 mm OD, 25 mm ID)
• Net Dimensions are: 947 mm (94.7 CM) × 365 mm (36.5 CM) × 947 (94.7 CM) mm
• Net Weight: 25.0 kg
• Panel Model: PC4NUNMAN (360° air delivery)
• Panel Dimensions are: 1000 × 66 × 1000 mm
• Drain Pump: Yes, Built-in

Samsung Chilled Water Cassette AC- Outdoor Unit Technical Specifications

• Application: The chiller can be integrated into a BMS HVAC system.
• Chilled Water Outlet: ~7°C, for cooling
• Hot Water Inlet: ~45°C, for heating

Chiller Capacity (Based on Indoor Units):

Model AG026TN1DKH/EU (2.6 kW)

• Required chilled water flow (LPM): 7.5 LPM
• Heating water flow (LPM): 8.4 LPM
• Total Load (LPM): ~0.74 Tons

Model AG042TN1DKH/EU (4.15 kW)

• Required chilled water flow (LPM): 11.9 LPM
• Heating water flow (LPM): 14.4 LPM
• Total Load (Tons): ~1.18 Tons

Model AG060AN4DKH/EU (6.0 kW)

• Required chilled water flow (LPM): 17.5 LPM
• Heating water flow (LPM): 21.1 LPM
• Total Load (Tons): ~1.7 Tons

Model AG090MN4PKH/EU (9.0 kW)

• Required chilled water flow (LPM): 26.0 LPM
• Heating water flow (LPM): 28.9 LPM
• Total Load (Tons): ~2.6 Tons

Model AG105MN4PKH/EU (10.0 kW)

• Required chilled water flow (LPM): 28.9 LPM
• Heating water flow (LPM): 30.8 LPM
• Total Load (Tons): ~2.8 Tons

Hydronic Pipeline Connections and Flow Requirements

Pipe Diameter:

Water Pipe for Supply/Return: Recommend is DN25 (25 mm)

Pipe may be insulated to prevent thermal losses

Flow Rate Range (Combined):

7.5 LPM to 30.9 LPM per unit

Pump Head Pressure:

Should be able to compensate for system resistance (pipe, valve, indoor unit)

Static Pressure Requirement:

Please refer to unit specs for each model

Power & Control Interface

• Power Supply for Chiller:
• 3 Phase
• 400V ±10% 50/60 Hz
• BMS Connectivity: Recommended for temperature modulation and control
• Control Valves: Motorized Two/Three-way Valves to each unit (optional)

What Makes the Samsung Chilled Water Cassette Air Conditioner the Best Choice?

• All Seasonal Comfort: Cooling and heating collide.
• Smart Controls: Supported by advanced remote controllers (MWR-SH00N, MWR-WE13N).
• Built-in Drain Pumps: Prevent water clogging within false ceilings.
• Flexible Sizes: Available from 2.6kW to 10kW, requested for small rooms or large halls.

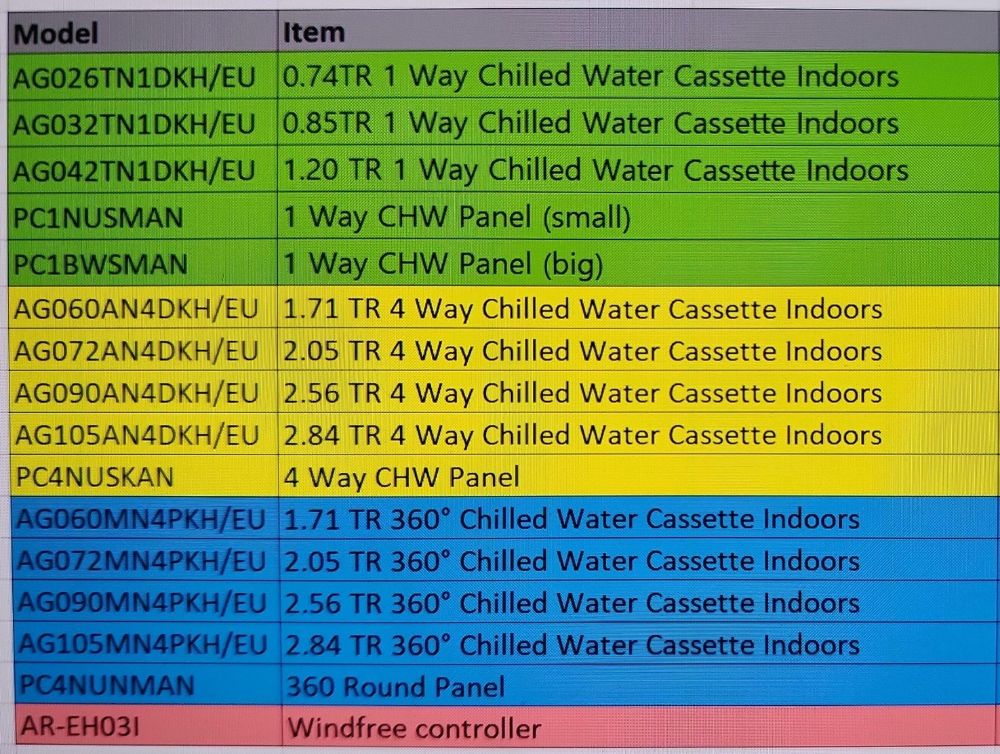

Price Range of Chilled Water Cassette AC:

• Model Name (1-Way Cassette) and Model number AG026TN1DKH/EU: 2.6 kW (Rs 36000)
• Model Name: AG032TN1DKH/EU (1-Way Cassette): 0 kW (36500 Rs/-)
• Model Name (1-Way Cassette) and Model Number AG042TN1DKH/EU: 4.15 kW (Rs 38000)
• Model Name: AG060AN4DKH/EU (4-Way Cassette): 6.0 kW (37000 Rs/-)
• Model Name: AG072AN4DKH/EU (4-Way Cassette):7.2 kW (38000 Rs/-)
• Model Name: AG090AN4DKH/EU (4-Way Cassette): 9.0 kW (40000 Rs/-
• Model Name: AG105AN4DKH/EU (4-Way Cassette): 10.0 kW (41000 Rs/-)
• Model Name: AG060MN4PKH/EU (360 Cassette): 6.0 kW (53000 Rs/-)
• Model Name: AG072MN4PKH/EU (360 Cassette):7.2 kW (64000 Rs/-)
• Model Name: AG090MN4PKH/EU (360 Cassette): 9.0 kW (65000 Rs/-)

How do you install a Samsung Chilled Water Cassette Unit?

Guide for Chilled Water Cassette Unit Installation

Prepare Ceiling Space:

• Ensure space for cassette depth in the false ceiling (up to 36.5cm).
• Allow clearance space around the panel for servicing activities.

Mount the Cassette Unit:

• This is important step: properly hang the indoor unit by using threaded rods and C Channels / hangers.
• Do a slight leveling of the unit, if required, to prevent drainage trouble.

Connect Piping:

• Connect chilled water inlet and outlet pipes.
• One should connect the drain pipe (the built-in pump will drain the water).
• Insulate water pipes against condensation.

Do the Electrical Wiring:

• Use wire gauges per specification; for power: 1.5~2.5 mm^2; transmission: 0.75~1.50 mm^2.
• Connect it to the thermostat/controller (optional-MWR-SH00N).

Install The Decorative Panel:

• Fit Winfree™ panel or other panel types supplied.
• Flush the panel properly and then align it to the ceiling.

Test the System:

• Power up the system.
• Using heating and cooling modes, verify operationality.
• Flow rates of water and fan speeds need to be checked.

Installation and Support Considerations of the Outdoor Unit

• Buffer Tank: For maintaining water volume and temperature stability
• Expansion Tank: A must to cater for thermal expansion
• For uniform water distribution to the units - Primary and Secondary Pumps

Glycol Solution: Optional, dependent upon location where freezing temperatures are a possibility
